Description
With only 3.16mV (max) of output peak-to-peak ripple, Linear Technology’s DC2340A board plugs into the Xilinx Kintex UltraScale FPGA KCU1250 Characterization Kit.
Key Features
- Compact and easy to implement design using DC/DC uModule Regulators with integrated inductors and MOSFETs.
- PMBus support allows simple interface for voltage and current monitoring, control, and power up/down sequencing.
- Supports 12V input.
Contact Analog Devices for DC2340A Board Schematics and Technical Data on Powering the MGTs

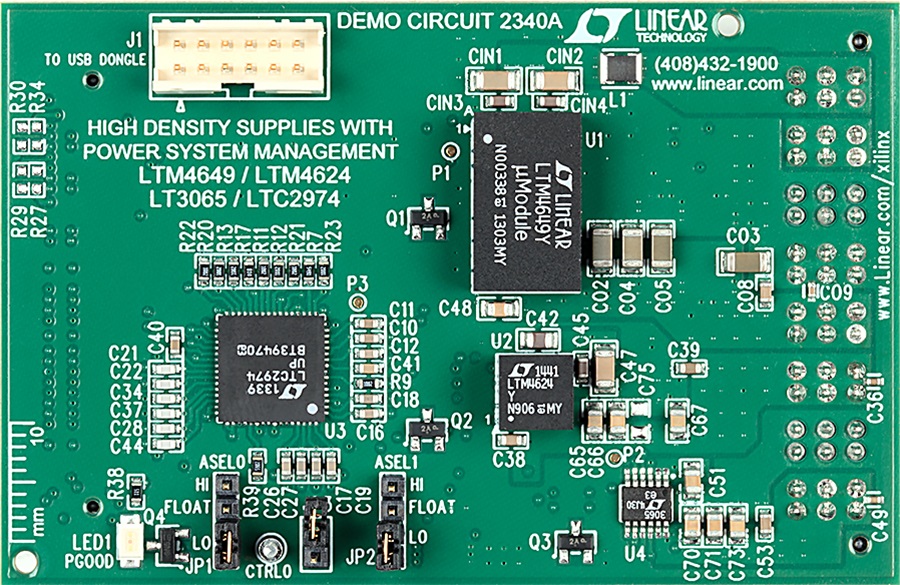

Kintex Ultrascale Plug In Card (TopView)

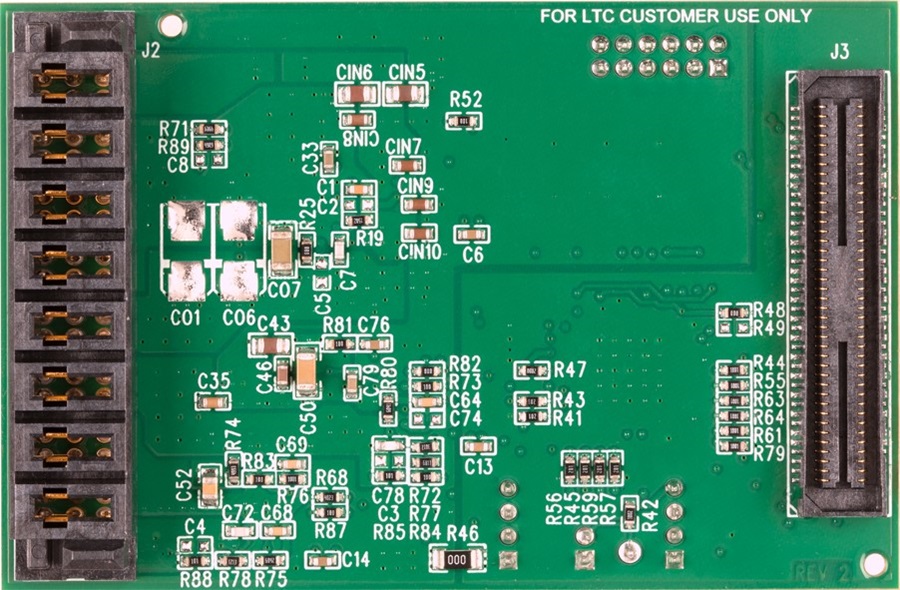

Kintex Ultrascale Plug In Card (Bottom View)

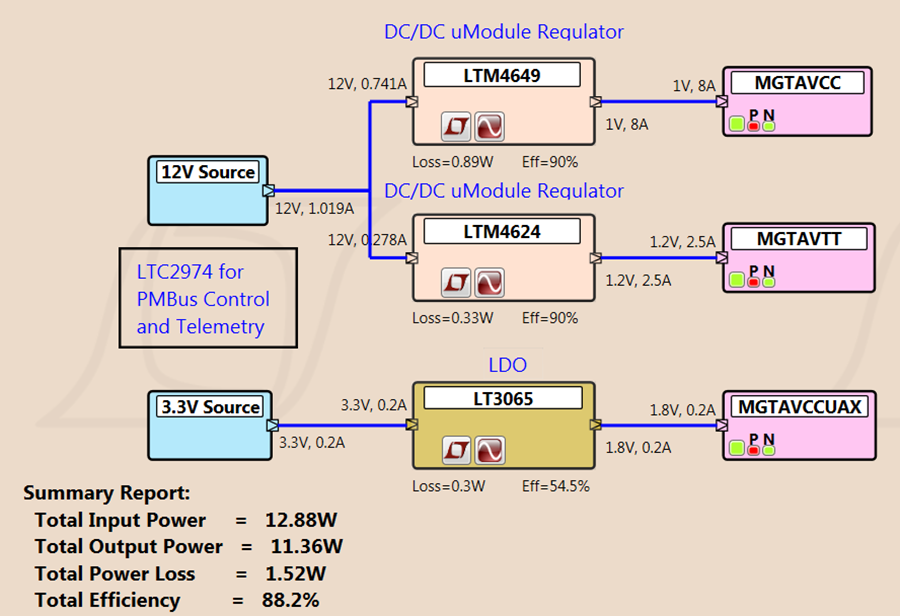

Kintex Ultrascale Plug In Card Power Tree
| Rail / Function | Part Number | General Description of Part |
| 1V: MGTAVCC | LTM4649 |
10A Step-Down DC/DC µModule Regulator |
| 1.2V: MGTAVTT | LTM4624 | 14Vin, 4A Sten Down µModule Regulator |
| 1.8V: MGTAVCCAUX | LT3065 | 500mA Low Noise Linear regulator with Programable Current Limit and Power Good |
| PMBus Voltage Control and Telemetry | LTC2974 | 4-Channel Power System Management Featuring Accurate Output Current Measurement |
