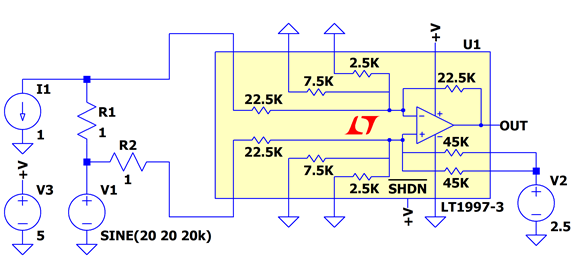

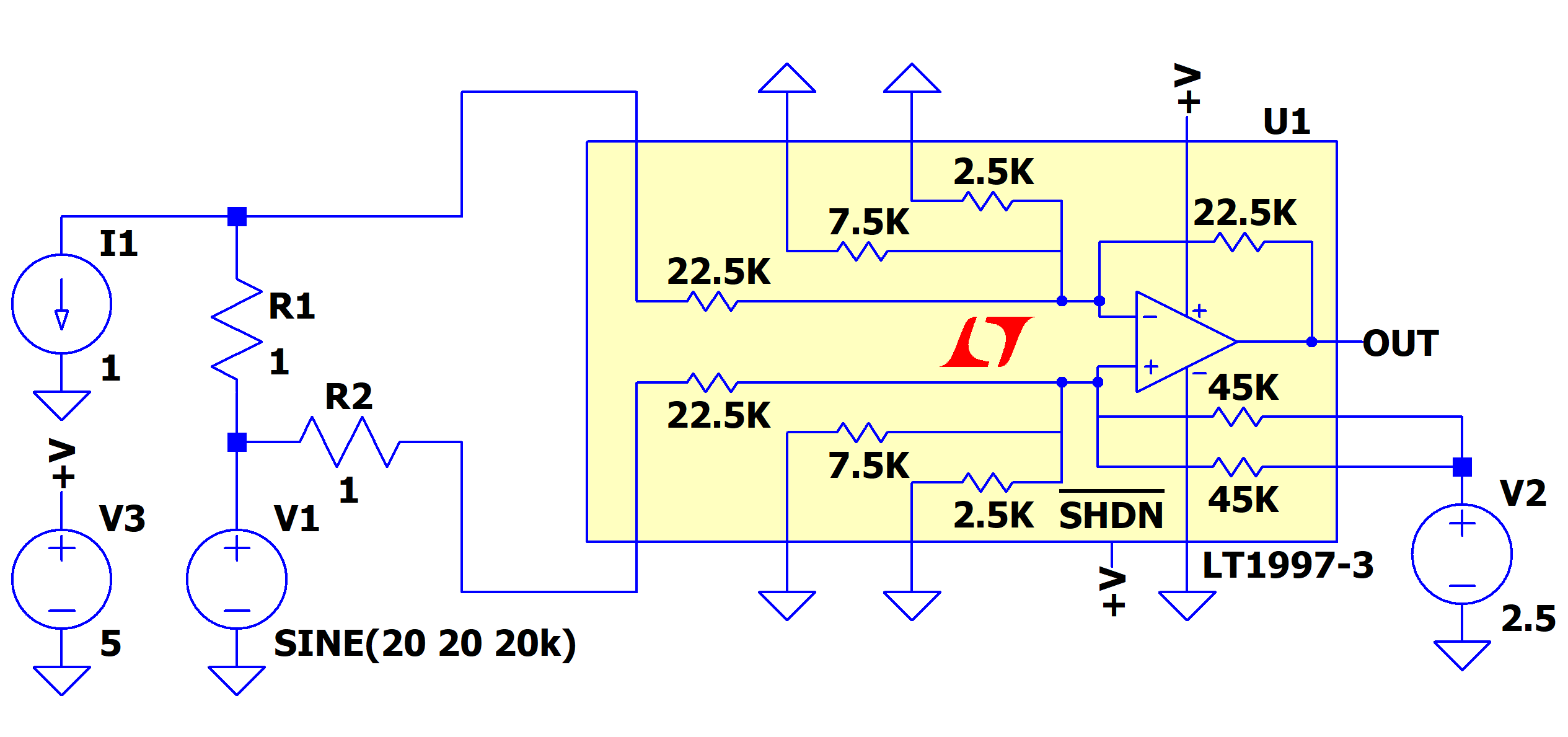

检测电阻器 R1 把电流转换为电压。在此放大器中对该电压实施从输入到输出的缓冲 (增益为 1)。V1 测试该电路对于共模变化的响应。一项仿真将显示：由于共模电压 V1 引起的输出电压变化是非常小。
LT1997-3把一个精准运算放大器与高度匹配的电阻器相结合，以形成一款用于准确地放大电压的单芯片解决方案。在未采用外部组件的情况下可实现 –13 至 +14 的增益和 0.006% (60ppm) 的准确度。LT1997-3 特别适合用作差动放大器，在此场合中，极佳的电阻器匹配可产生大于 91dB 的共模抑制比。
