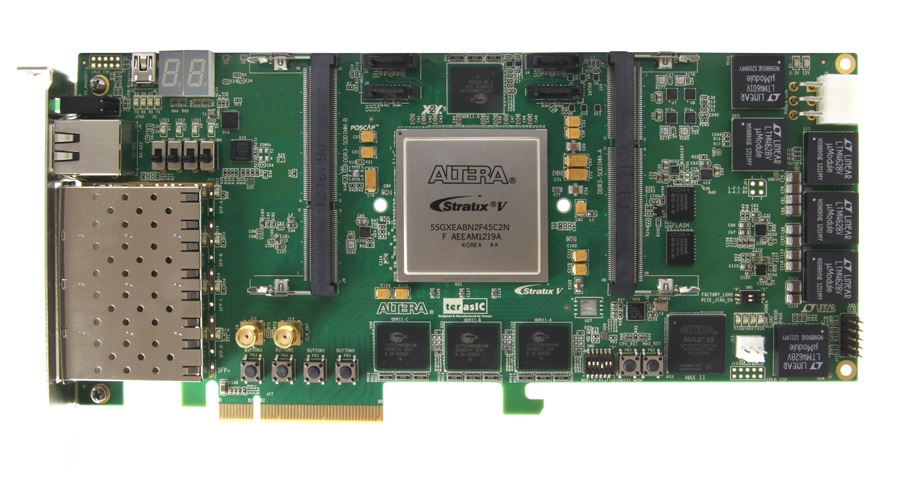

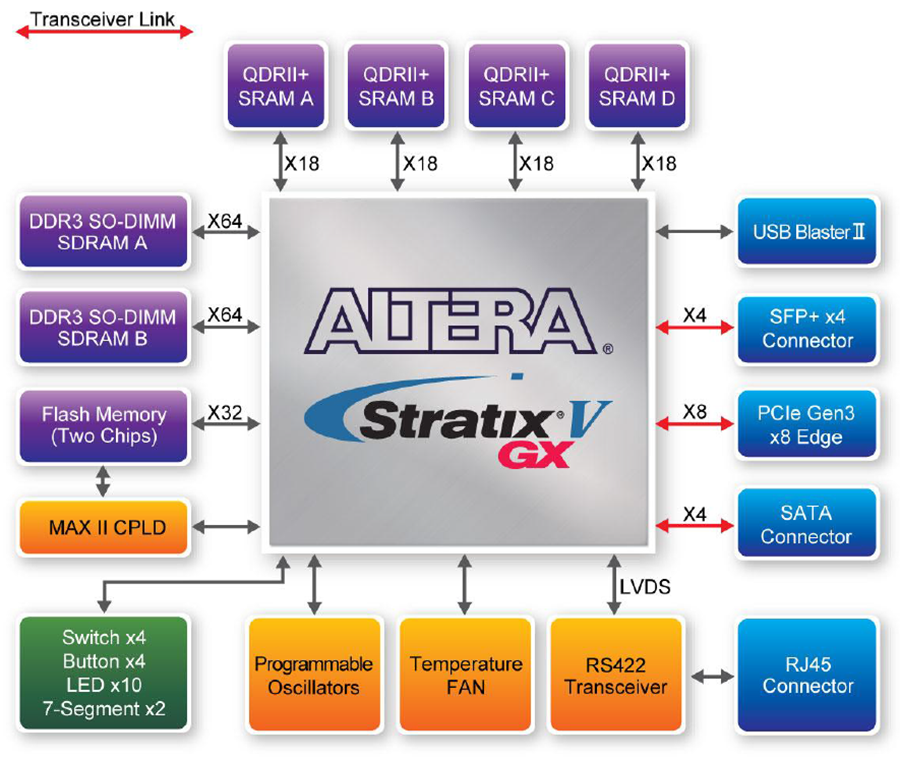

The DE5-Net Stratix V FPGA Development Kit is perfectly suited for extreme high powered needs including cloud computing, high frequency trading, and security networks. Featuring an ultra-high bandwidth memory architecture, low-latency SFP+ interfaces, expandable memory, and PCIe communication, the DE5-Net allows fo maximum flexibility in terms of low-power, speed, and performance.

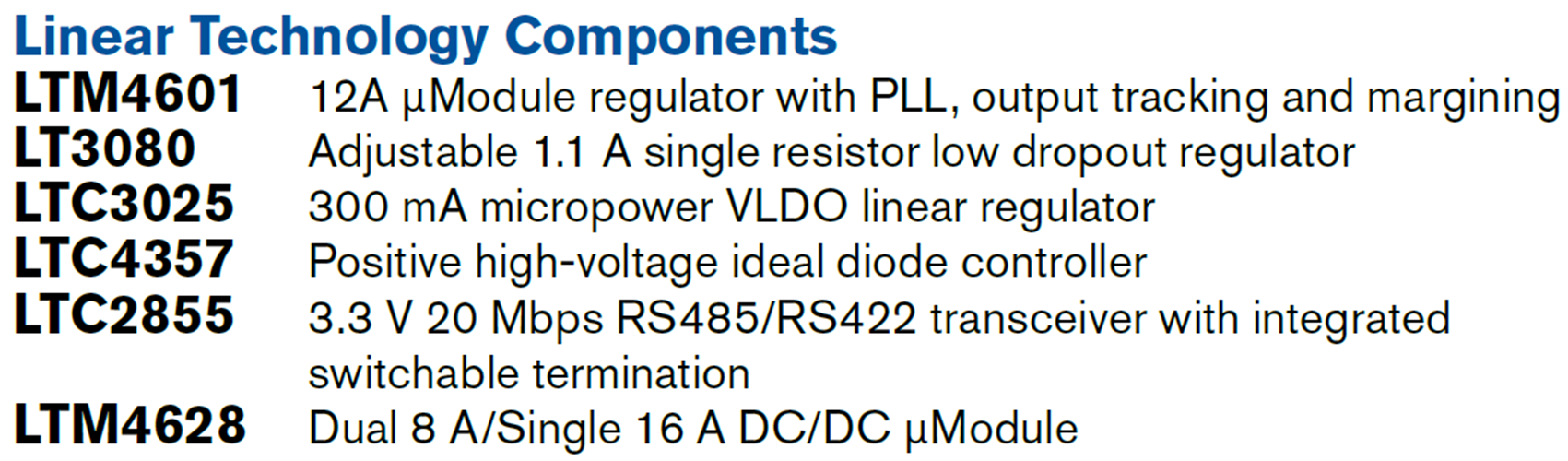

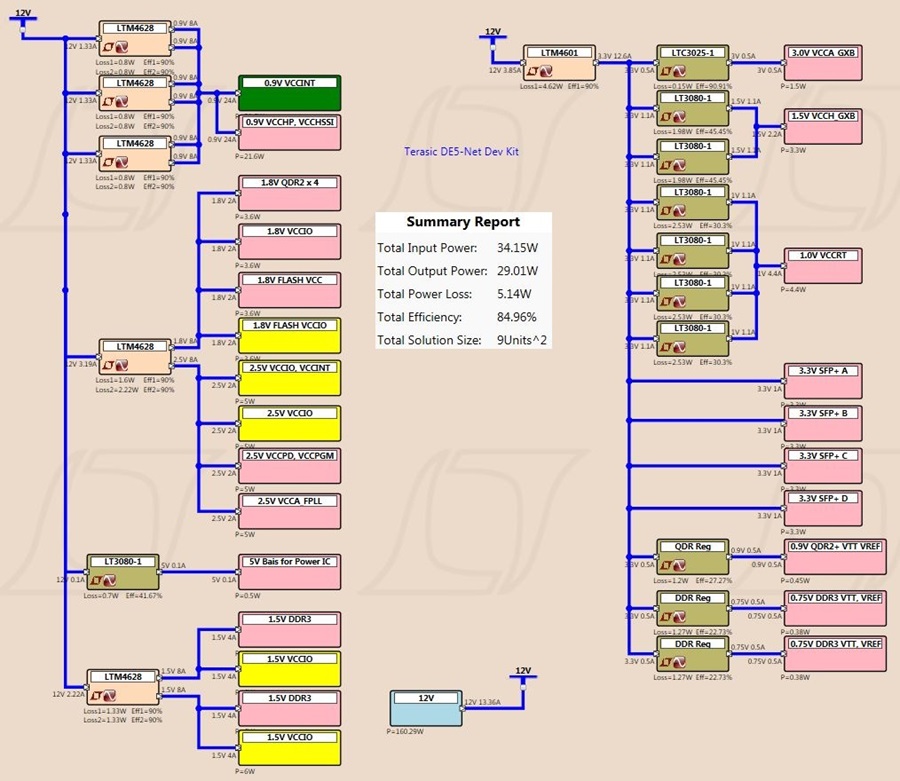

Function / Rail	Part Number	General Description of Part
0.9V VCCINT (FPGA Core) 1.8V VCCIO 2.5V VCCIO 1.5V VCC for DDR3	LTM4628	Dual 8A or Single 16A µModule regulator
1.0V VCCR, VCCT 1.5V VCCD_FPLL 5.0V Bias	LT3080-1	Parallelable 1.1A Adjustable Singel Resister Low Dropout Regulator
3.3V System Power	LTM4601	12A µModule Regulator with PLL, Output Tracking and Margining
3.0V VCCA_GXB	LTC3025	300mA Micropower VLDO Lienear regulator
12V Power Source Selector	LTC4357	Positive High Voltage Ideal Diode Controller
