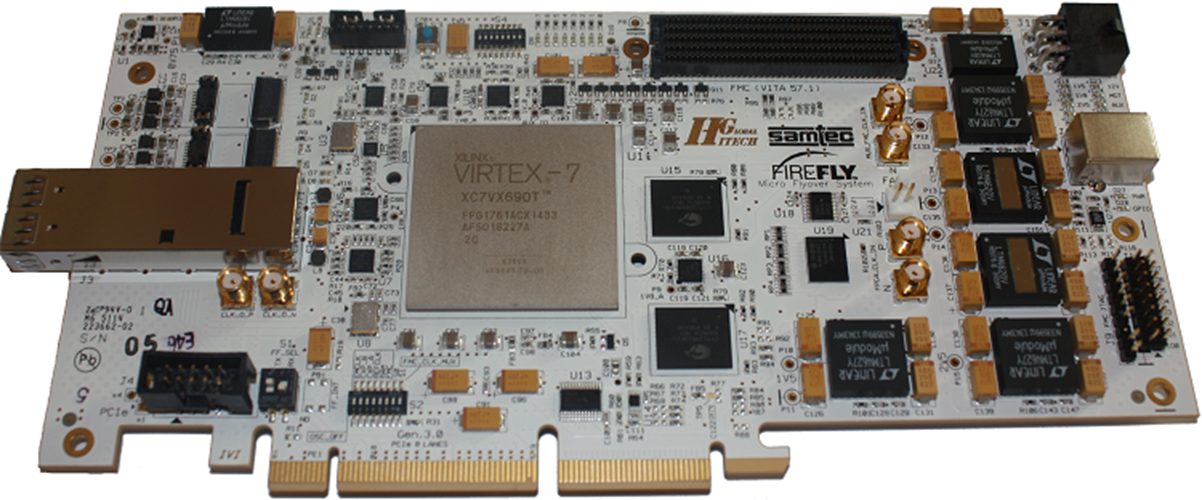

HiTech Global's HTG-712, populated with the Xilinx Virtex-7 V2000T, V585T, or X690T, is ideal for High-End networking applications requiring data transfer above 120Gbps.

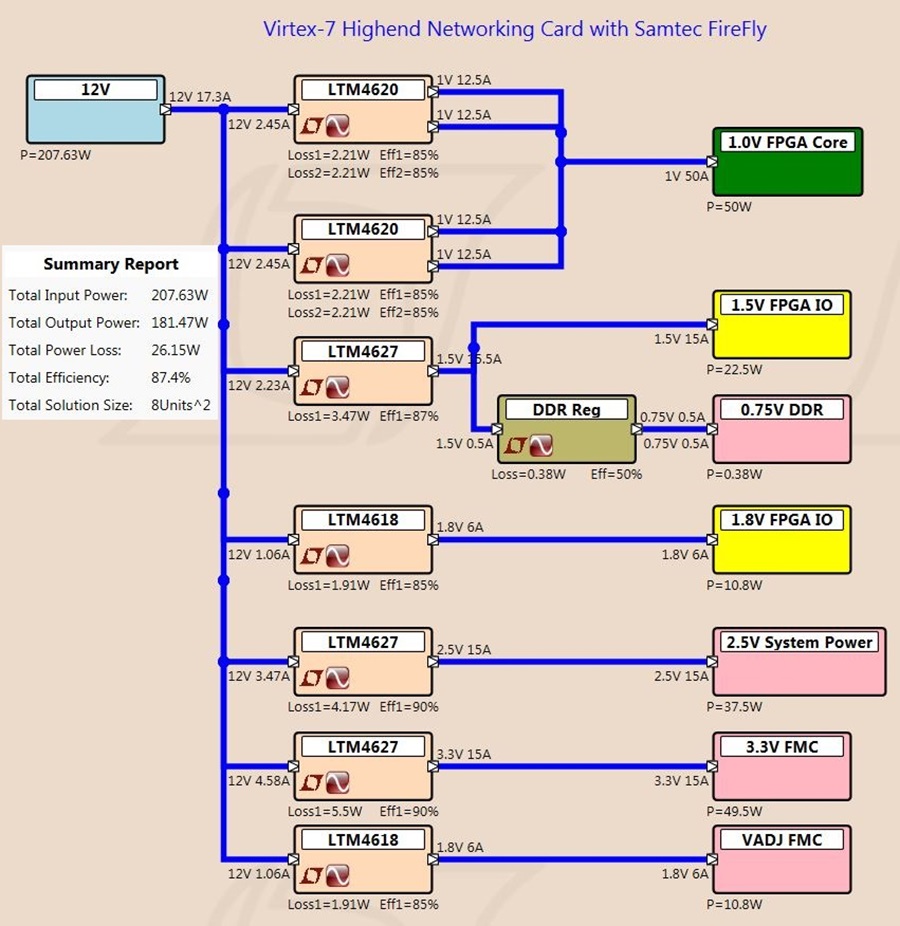

Rail/Function	Part Number	General Description of Part
1.0V: FPGA Core	LTM4620	Dual 13A or Single 26A DC/DC μModule Regulator
1.5V: FPGA IO 2.5V: System Power 3.3V: FMC	LTM4627	15A DC/DC µModule regulator
1.8V: FPGA IO 1.8V: FMC	LTM4618	6A DC/DC µModule Regulator with Tracking and Frequency Synchronization
