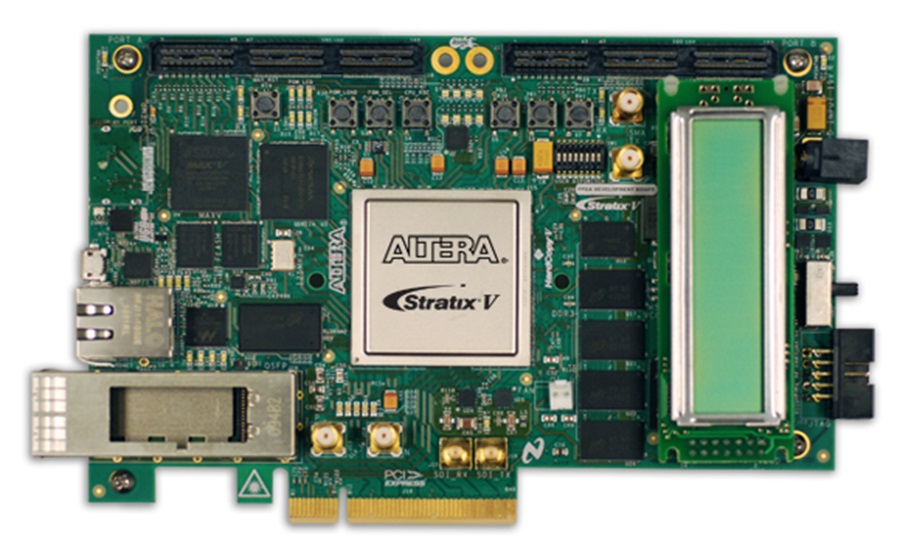

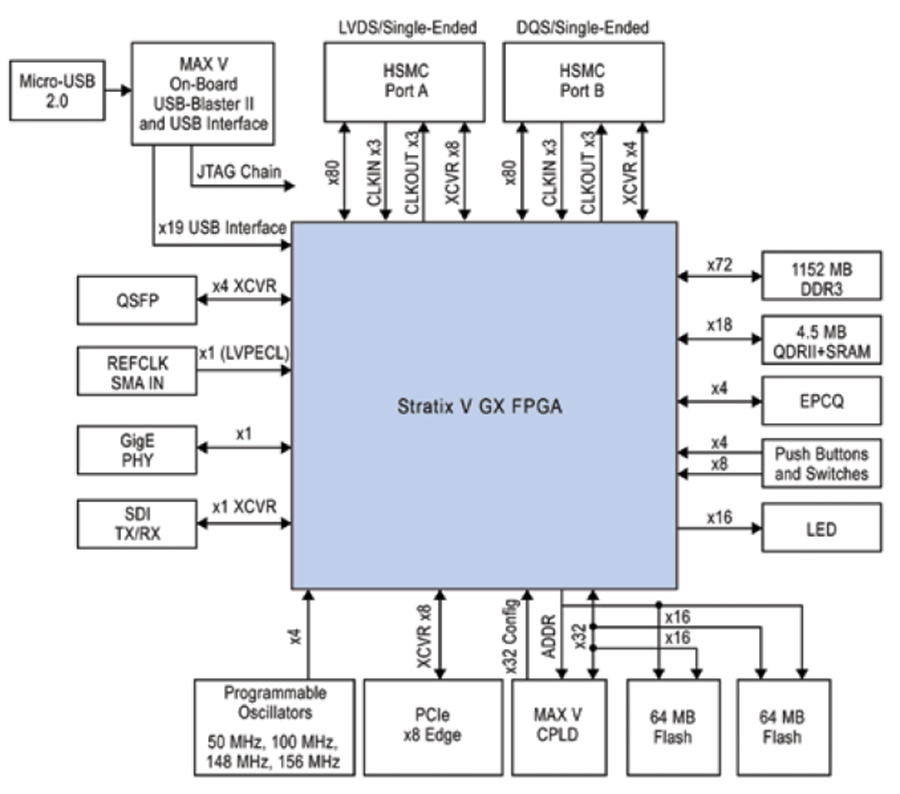

The Altera^® Stratix^® V GX FPGA Development Kit provides a complete design environment that includes all the hardware and software you need to begin developing FPGA designs immediately. The development kit is RoHS compliant. You can use this development kit to do the following:

• Develop and test PCI Express^® (PCIe^®) designs at data rates up to Gen3 using the PCIe short card form factor-compliant development board.
• Develop and test memory subsystems for DDR3, QDR II+, or RLDRAM II memories.
• Use the high-speed mezzanine card (HSMC) connectors to interface to one of over 35 different HSMCs provided by Altera partners, supporting protocols, such as Serial RapidIO^®, 10 Gbps Ethernet, SONET, CPRI, OBSAI, and others.

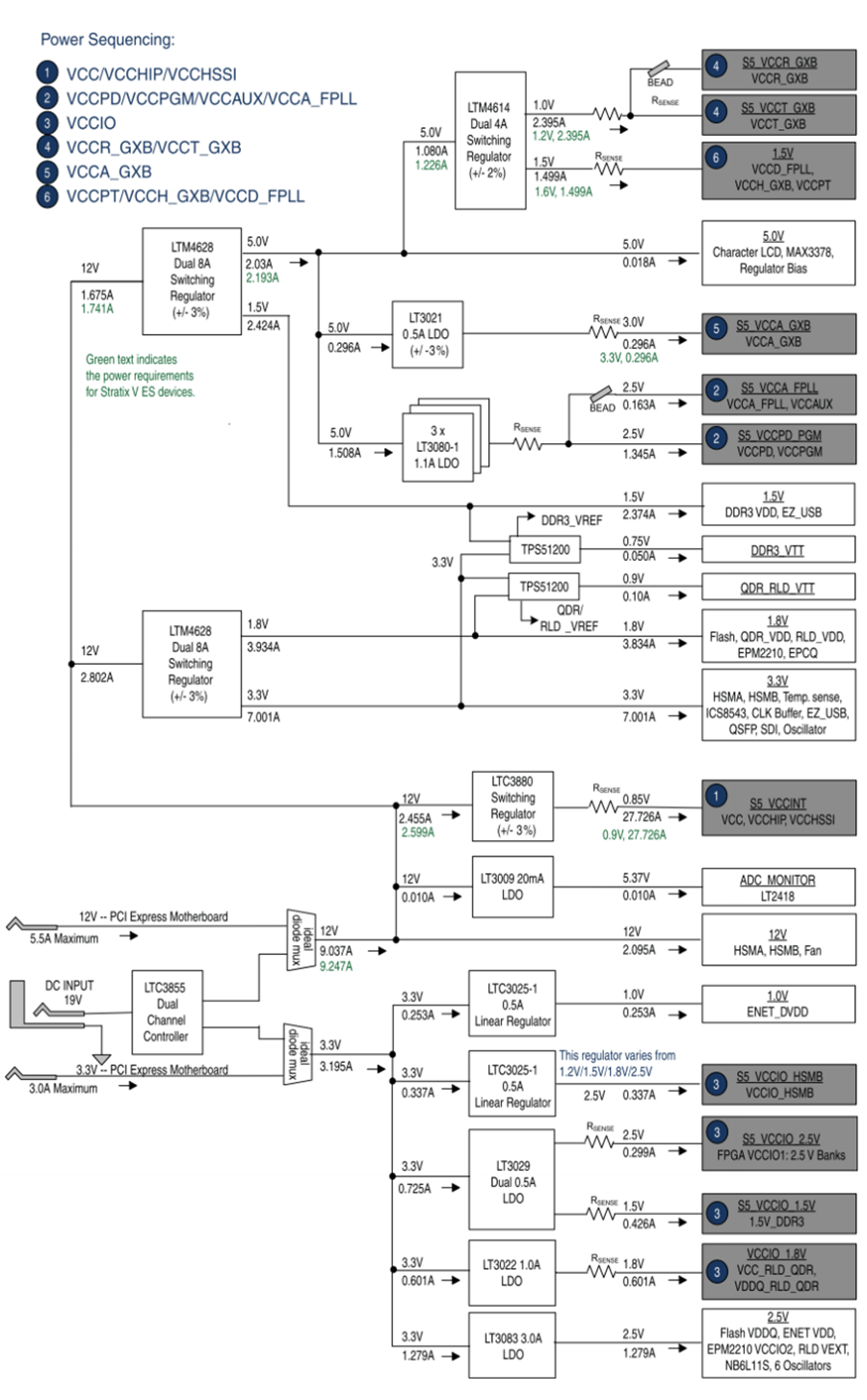

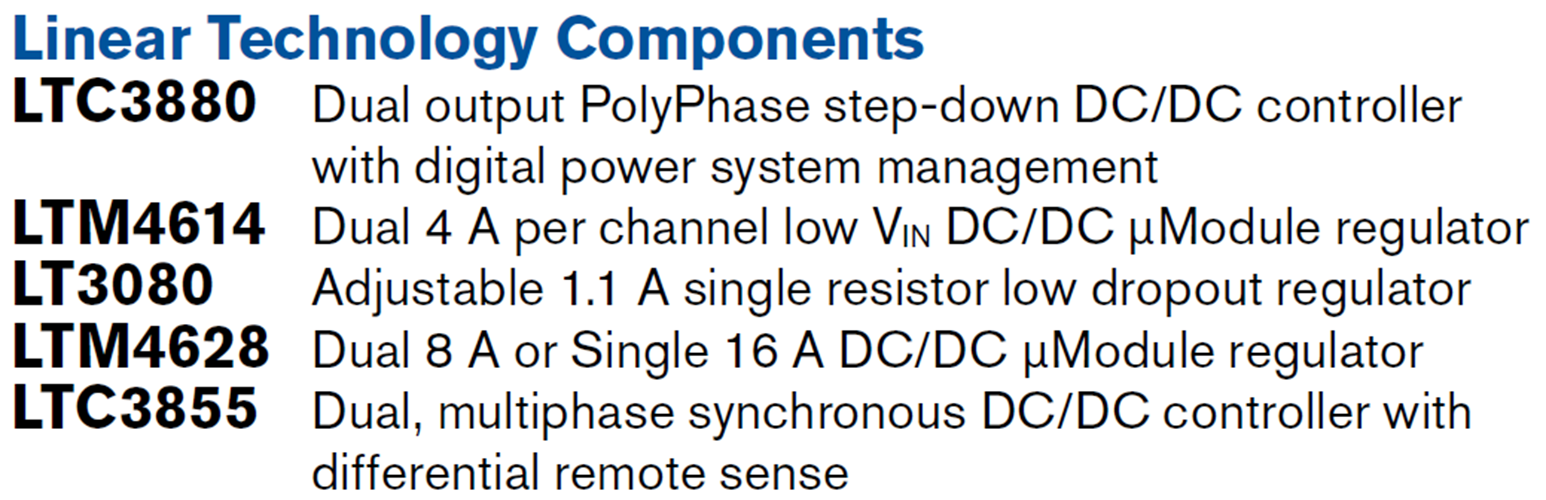

Rail / Function	Part Number	General Description of Part
0.85V: VCCINT (FPGA Core)	LTC3880	Dual output PolyPhase step-down DC/DC controller with digital power system management.
5V: System Power	LT3009	3μA IQ, 20mA Low Dropout Linear Regulators
5V, 3.3V, 1.8V, 1.5V: System Power	LTM4628	Dual 8A or Single 16A µModule regulator
1.0V: VCCR, CVVT 1.5V : VCCD_FPLL, VCCH_GXB, VCCPT	LTM4614	Dual 4A per channel low Vin DC/DC µModule regulator
3.0V: VCCA_GXB	LT3021	500mA, Low Voltage, Very Low Dropout Linear Regulator
2.5V: VCCA_FPLL, VCCPD_PGM	LT3080-1	Paralellable 1.1A Single Resister Low Dropout Regulator
12V, 3.3V: System Power	LTC3885	Dual, Multiphase Synchronous DC/DC Controller with Differential Remote Sense
1.0V: ENET_DVDD 1.5V : VCCIO_HSMB	LTC3025-1	300mA Micropower VLDO Linear Regulator
2.5V: VCCIO 1.5V : VCCIO	LT3029	Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear regulator
1.8V: VCCIO	LT3022	1A, 0.9V to 10V, Very Low Dropout Linear Regulator
2.5V: System Power	LT3083	Adjustable 3A Single resistor Low Dropout Regulator
Housekeeping system power and power management	LTC2915 LTC2418 LTC4357 LTC2990 LTC4352	Voltage and current monitor, AD Convertor, Hot Swap Controller, Ideal Diode
