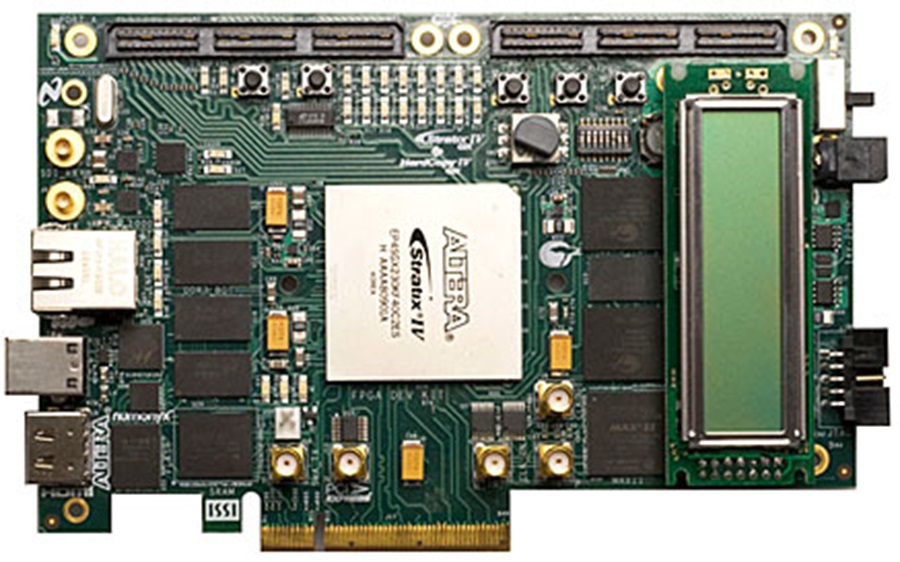

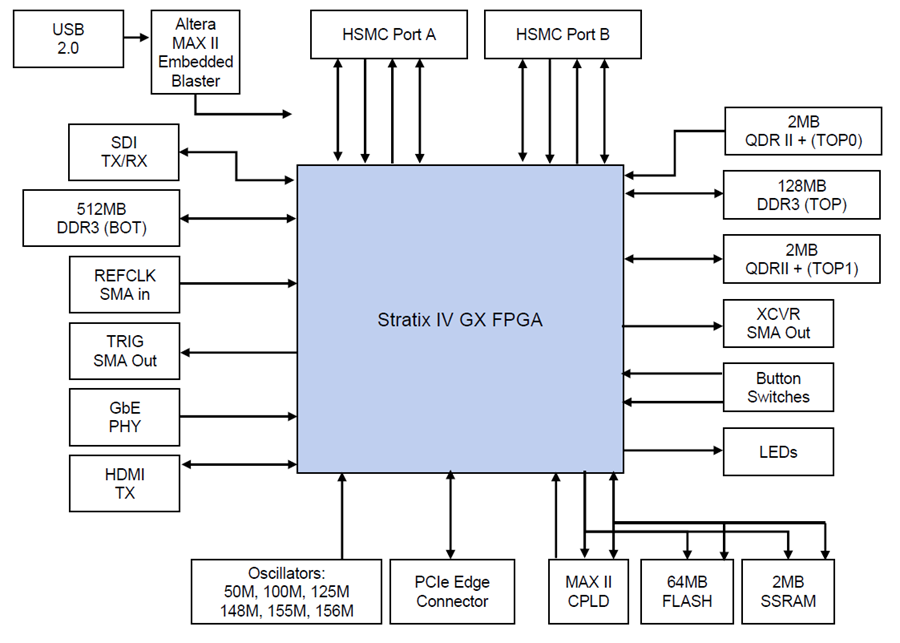

The Altera Stratix IV GX FPGA Development Kit delivers a complete system-level design environment that includes both the hardware and software needed to immediately begin developing FPGA designs. With this PCI-SIG-compliant board and a one-year license for Quartus II design software, you can develop and test PCI Express 2.0 (up to x8 lane) endpoint and rootpoint designs. Develop and test memory subsystems consisting of DDR3 and/or QDR II+ memory or add other Stratix IV GX supported protocol interfaces such as 10-Gigabit Ethernet, CPRI, OBSAI, SAS/SATA, Serial RapidIO, and many others through the high-speed mezzanine connectors (HSMC).

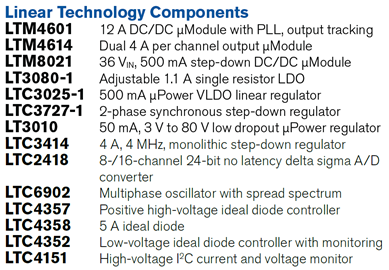

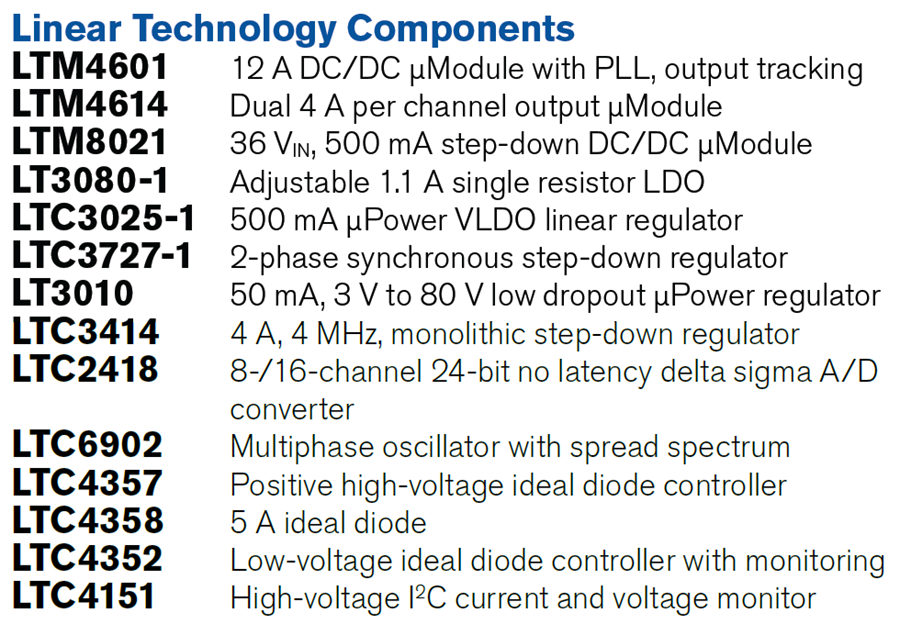

Linear Technology Components

LTM4601 12A DC/DC μModule with PLL, output tracking.

LTM4614 Dual 4A per channel output μModule.

LTM8021 36 V_IN, 500 mA step-down DC/DC μModule.

LT3080-1 Adjustable 1.1A single resistor LDO.

LTC3025-1 500mA μPower VLDO linear regulator.

LTC3727-1 2-phase synchronous step-down regulator.

LT3010 50 mA, 3 V to 80 V low dropout μPower regulator.

LTC3414 4A, 4MHz, monolithic step-down regulator.

LTC2418 8-/16-channel 24-bit no latency delta sigma A/D converter.

LTC6902 Multiphase oscillator with spread spectrum.

LTC4357 Positive high-voltage ideal diode controller.

LTC4358 5A ideal diode.

LTC4352 Low-voltage ideal diode controller with monitoring.

LTC4151 High-voltage I²C current and voltage monitor.
