概览

产品详情

Helio base board with Altera Cyclone V SoC FPGA combines the power of dual ARM Cortex-A9 processors with the flexibility of programmable logic. Fully tested and proven platform enables you to get an ARM SoC design up and running in minutes.

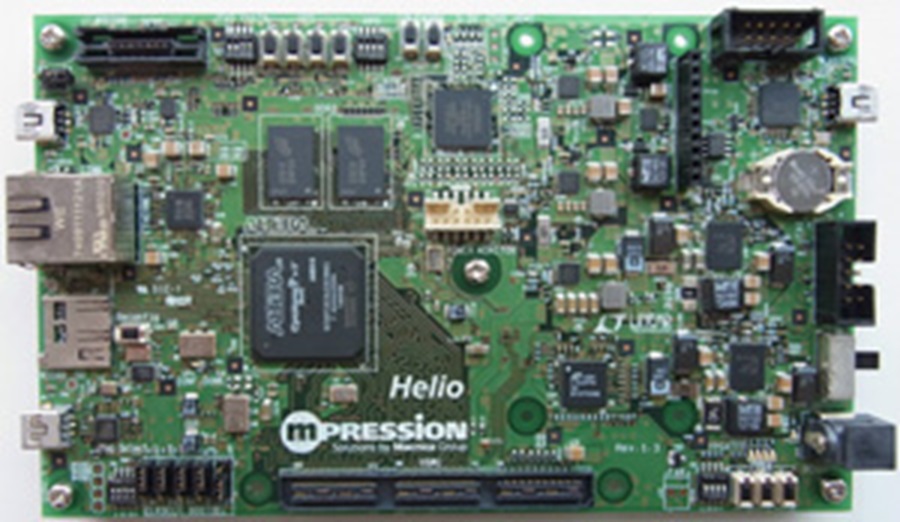

Helio Base Board

  • High-performance SDRAM interface with 1GB DDR3 memory + microSD card
  • Robust I/O including USB, 1G Ethernet, UART, I2C
  • Built-in USB Blaster II for configuration and debug
  • Altera-standard HSMC expansion connector for system flexibility [more...]

Helio Base Board

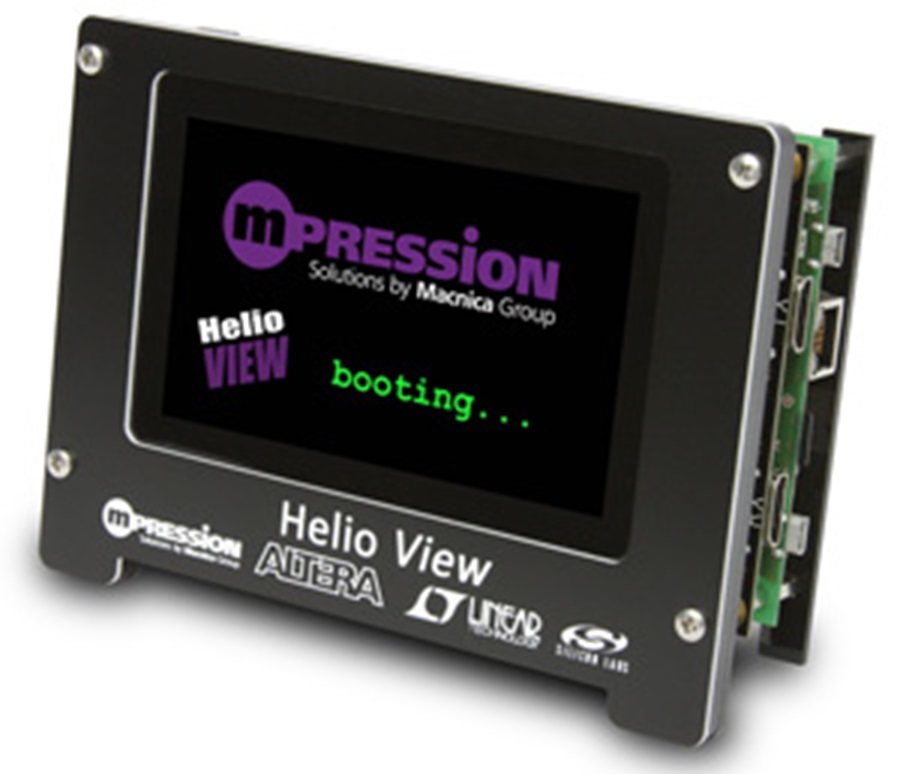

Helio View Touch LCD Display with HDMI Video

  • Adds powerful graphics and video capabilities to the Helio board
  • Ideal for developing designs for applications requiring touch screen input or video processing
  • Example applications:
    • Industrial control systems
    • Medical equipment
    • Scientific instrumentation

Helio View Touch LCD Display with HDMI Video

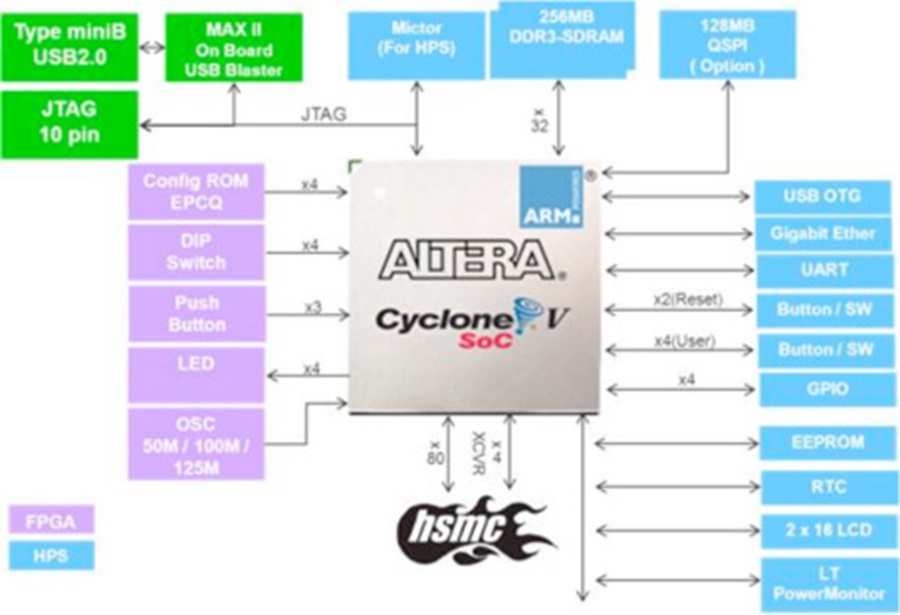

Helio Board Block Diagram
