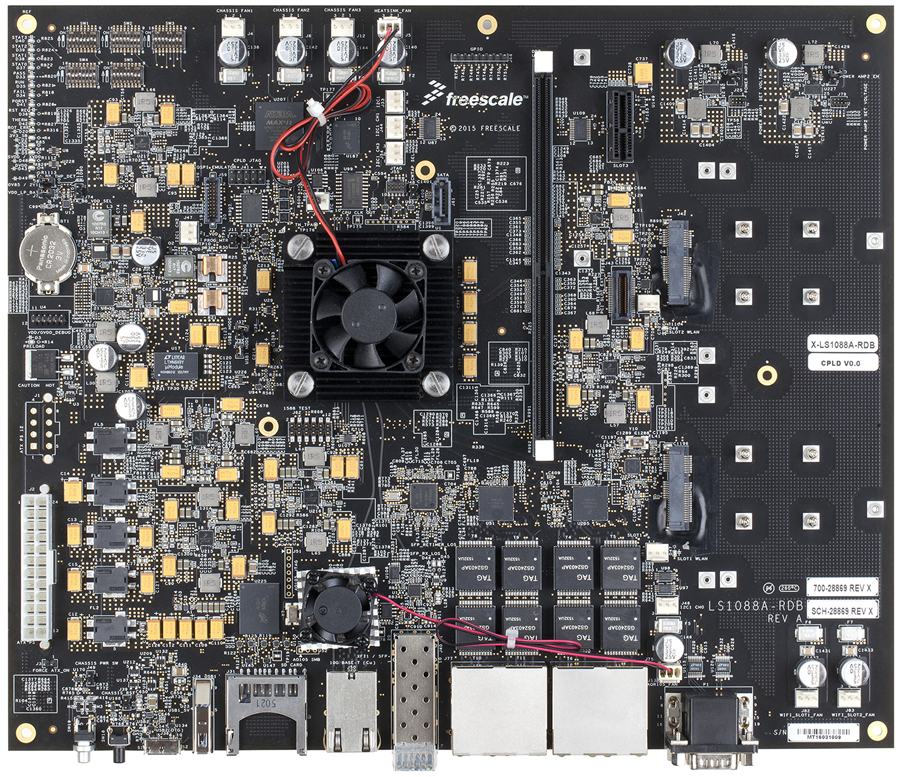

The QorIQ LS1088A reference design board (LS1088A-RDB) is designed to exercise most capabilities of the LS1088A device; with up to eight ARM^® Cortex^®-A53 cores with the advanced, high-performance data-path and network peripheral interfaces required for wireless access points, networking infrastructure, intelligent edge access, including virtual customer premise equipment (vCPE) and high-performance industrial applications.

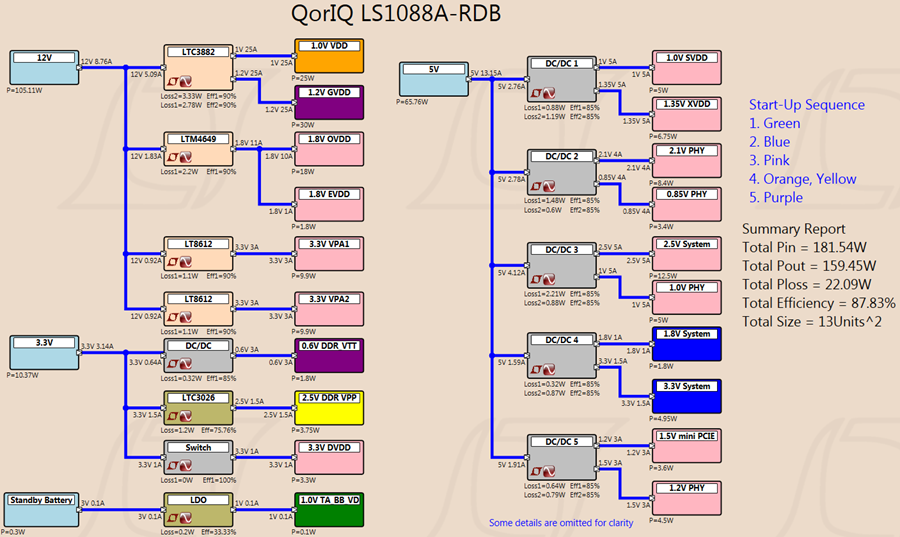

Rail/Function	Part Number	General Description of Part
1.0V : VDD 1.2V : GVDD	LTC3882	Dual Output PolyPhase Step-Down DC/DC Voltage Mode Controller with Digital Power System Management
1.8V : OVDD	LTM4649	10A Step-Down DC/DC µModule Regulator
3.3V : VPA	LT8612	42V, 6A Synchronous Step-Down Regulator with 3µA Quiescent Current
2.5V : DDR VPP	LTC3026	1.5A Low Input Voltage VLDO Linear Regulator
