LTC7851 四相 1.2V/140A 转换器具分立栅极驱动器和 MOSFET

详情介绍
  • DK-START-5AGXB3N Starter Kit
  • LTC Parts List
  • DK-START-5AGXB3N Power Tree
  • DK-START-5AGXB3N Block Diagram
  • DK-START-5AGXB3N Power Tree No TI
DK-START-5AGXB3N Starter Kit
LTC Parts List
DK-START-5AGXB3N Power Tree
DK-START-5AGXB3N Block Diagram
DK-START-5AGXB3N Power Tree No TI

概览

产品详情

The Altera Arria V GX Starter Kit provides a complete design environment that includes all the hardware and software you need to develop cost-sensitive FPGA applications immediately. The development kit is RoHS compliant.

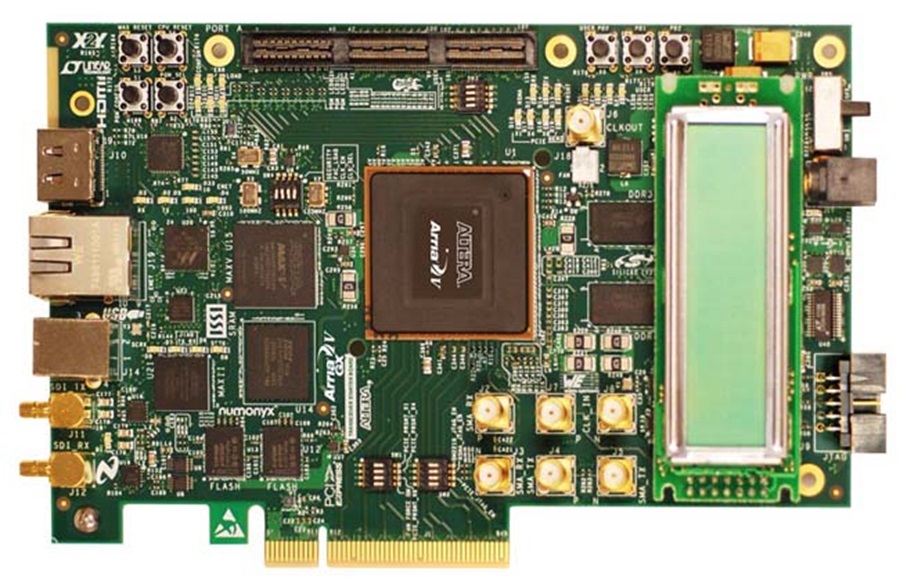

DK-START-5AGXB3N Starter Kit

DK-START-5AGXB3N Starter Kit

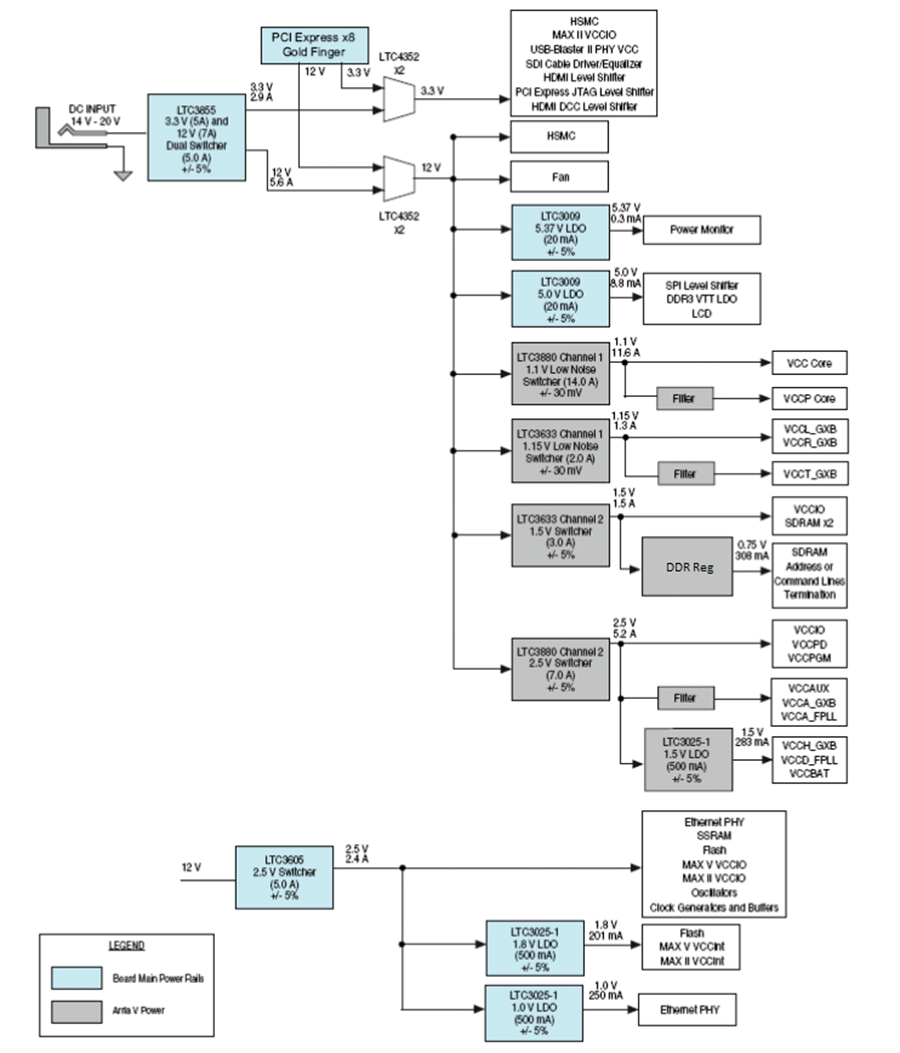

DK-START-5AGXB3N Power Tree No TI

DK-START-5AGXB3N Power Tree

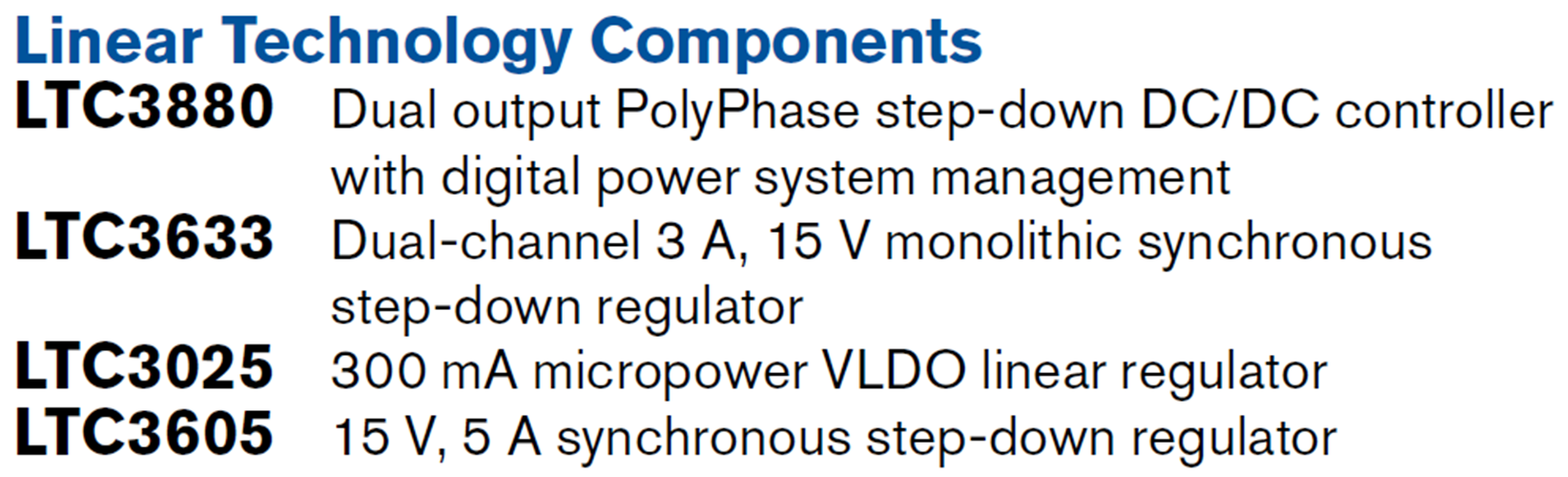

Linear Technology Components


LTC3880 Dual output PolyPhase step-down DC/DC controller with digital power system management.



LTC3633 Dual-channel 3 A, 15 V monolithic synchronous step-down regulator.


LTC3025 300 mA micropower VLDO linear regulator.


LTC3605 15 V, 5 A synchronous step-down regulator.

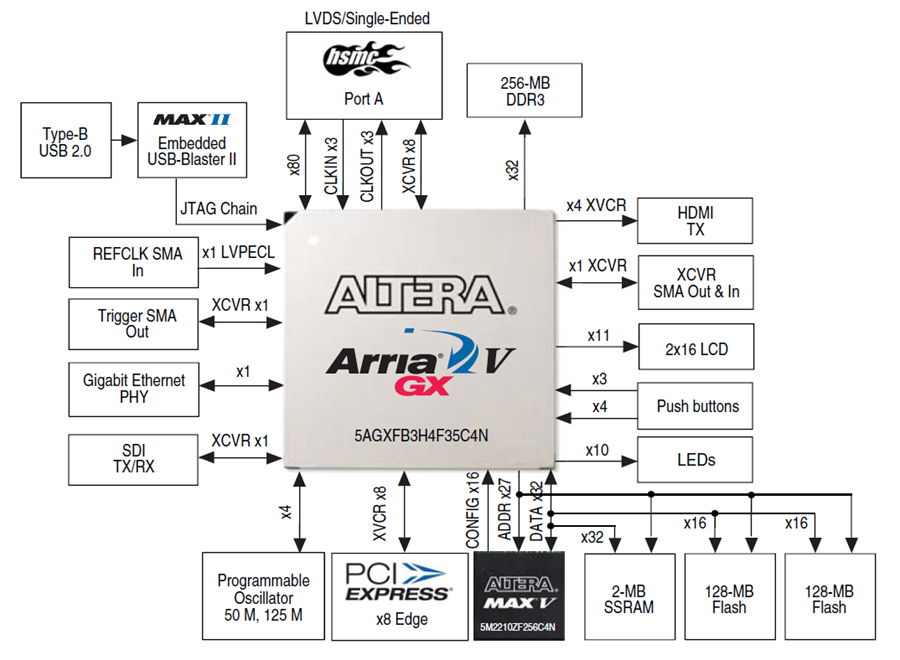

DK-START-5AGXB3N Block Diagram

DK-START-5AGXB3N Block Diagram
