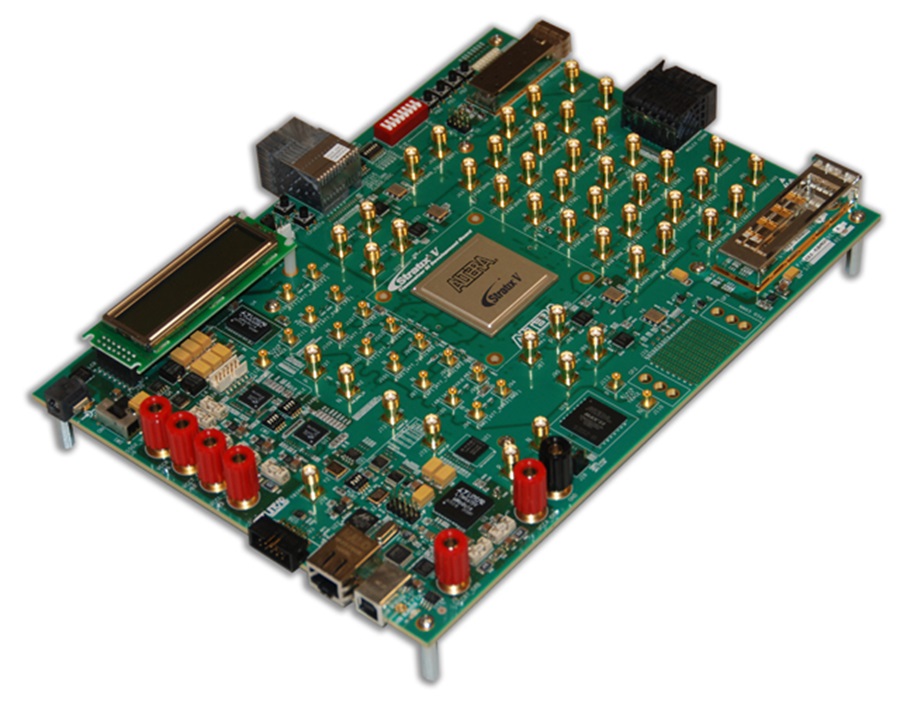

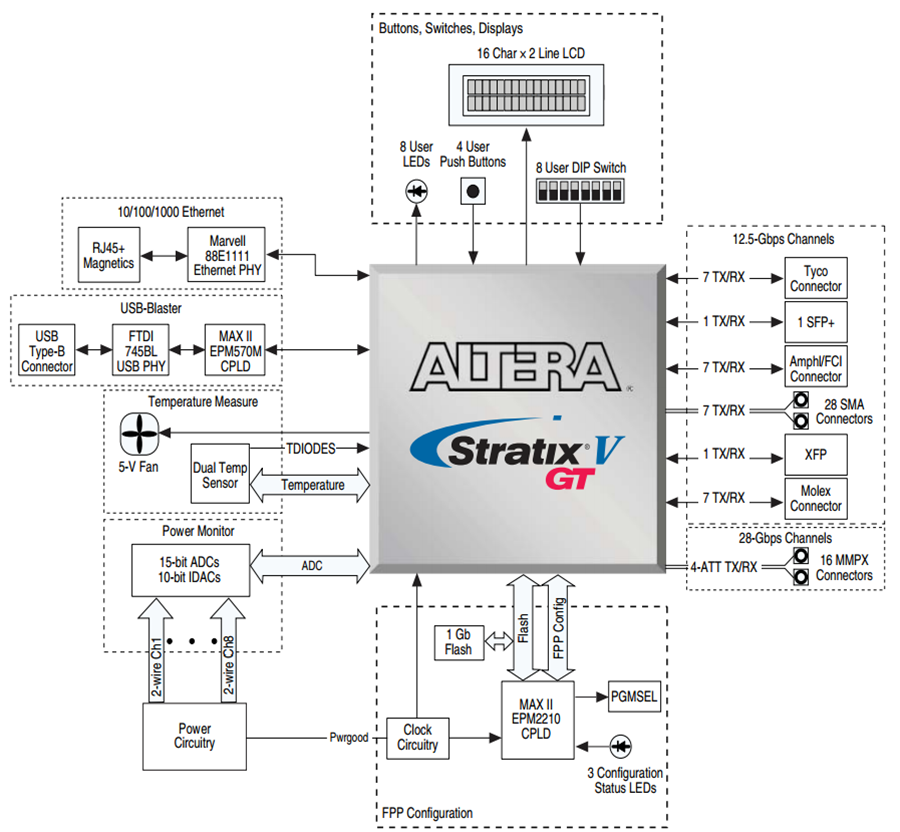

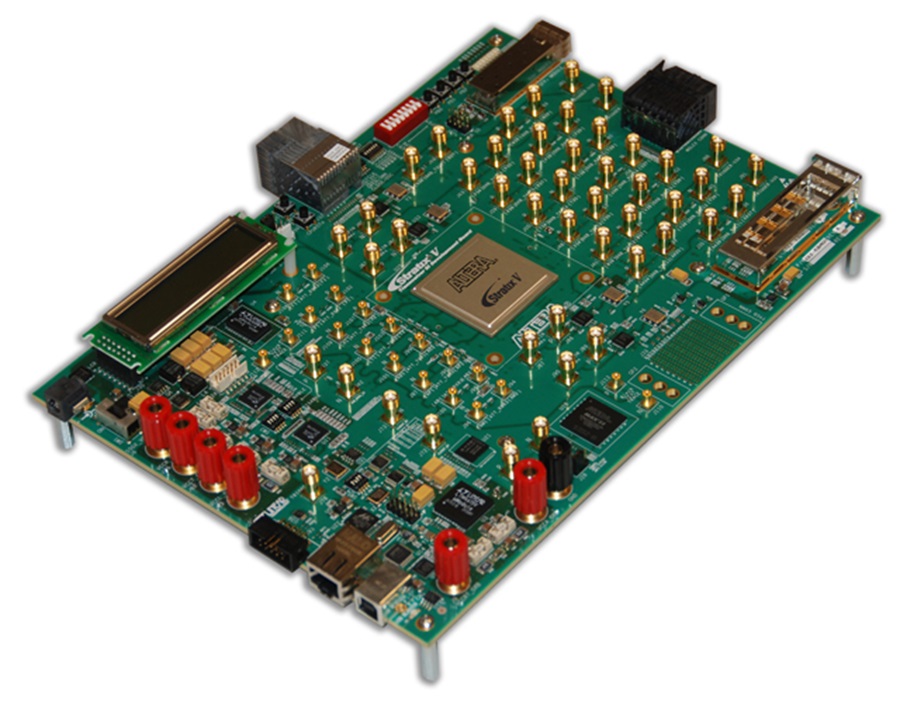

The Altera^® Stratix^® V GT Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:

• Evaluate transceiver link performance up to 28 Gbps
• Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus^® II software)
• Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)
• Perform jitter analysis
• Verify physical media attachment (PMA) interoperability with Stratix V GT FPGAs for targeted protocols, such as CEI-25/28G, CEI-11G, PCI Express^® (PCIe^®) Gen 3.0, 10GBASE-KR, 10 Gigabit Ethernet, XAUI, CEI-6G, Serial RapidIO^®, HD-SDI, and others
• Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER

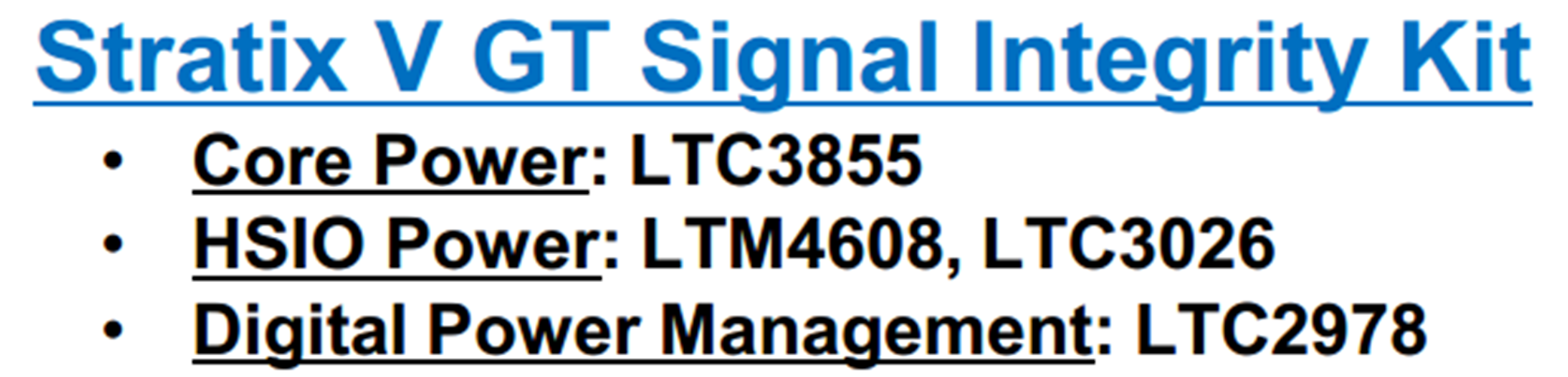

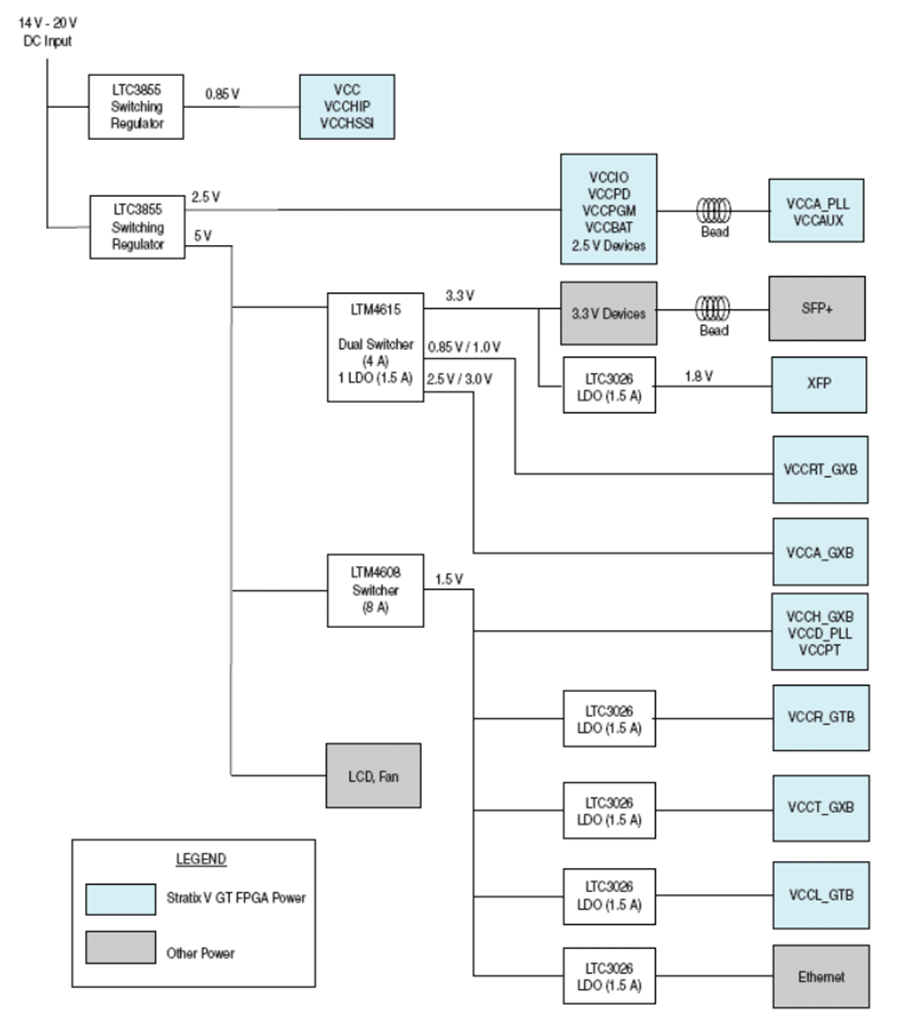

Linear Technology Components

LTC3855 Dual, Multiphase Synchronous DC/DC Controller with Differential Remote Sense.

LTM4615 Triple Output, Low Voltage DC/DC μModule Regulator.

LTM4608 8A, Low V_IN DC/DC µModule with Tracking, Margining, Multiphase and Frequency Synchronization.

LTC3026 1.5A Low Input Voltage VLDO Linear Regulator.

LTC2978 Octal Digital Power Supply Manager with EEPROM.
