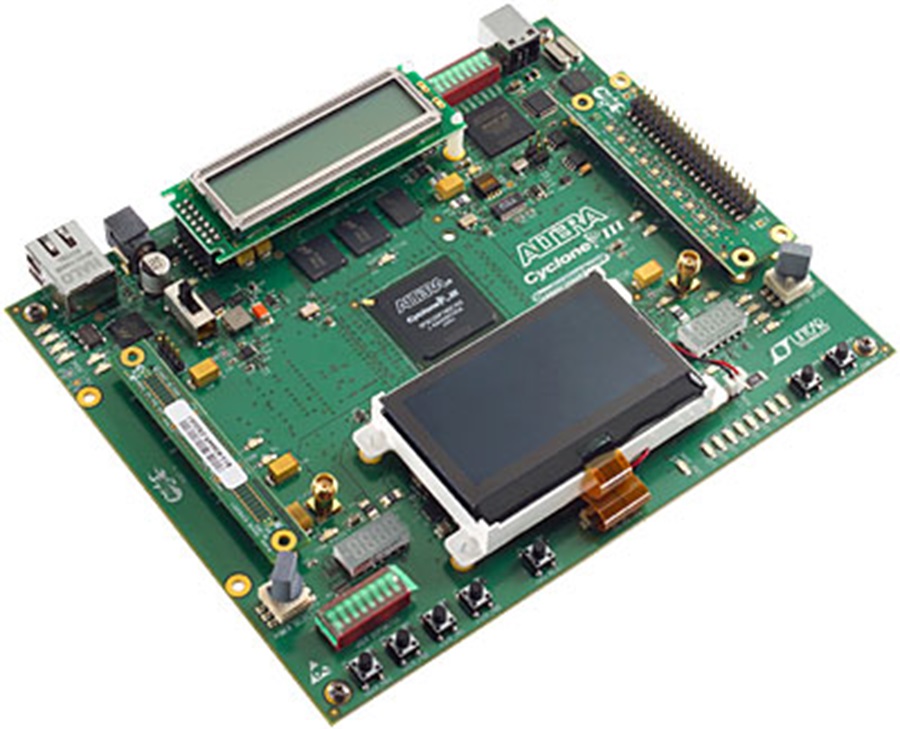

The DSP Development Kit, Cyclone III Edition delivers a complete DSP development environment for design engineers. The DSP Development Kit, Cyclone III Edition includes the Cyclone III development board, the Data Conversion HSMC, the DSP Builder development tool, Quartus II development software, MATLAB/Simulink evaluation software, evaluation IP cores, design examples, power supplies, cables, and documentation.

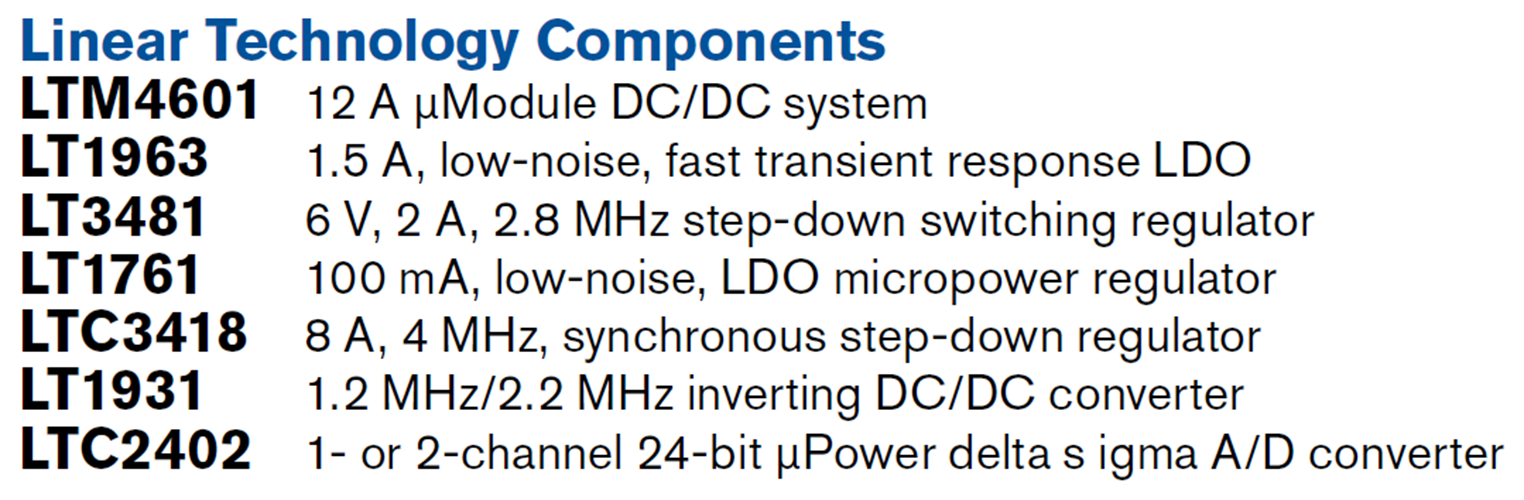

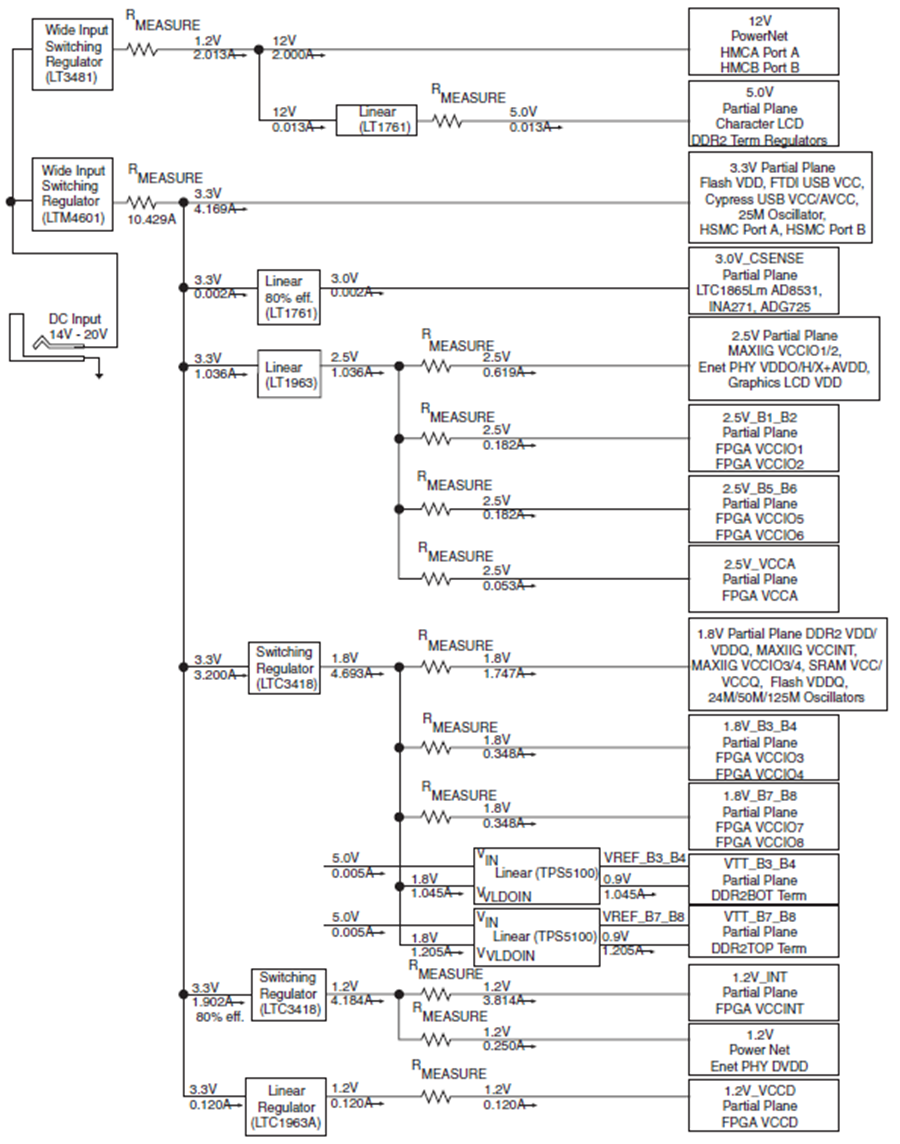

Linear Technology Components

LTM4601 12A μModule DC/DC system.

LT1963 1.5A, low-noise, fast transient response LDO.

LT3481 6V, 2A, 2.8MHz step-down switching regulator.

LT1761 100mA, low-noise, LDO micropower regulator.

LTC3418 8A, 4MHz, synchronous step-down regulator.

LT1931 1.2MHz/2.2 MHz inverting DC/DC converter.

LTC2402 1- or 2-channel 24-bit μPower delta sigma A/D converter.
