产品详情

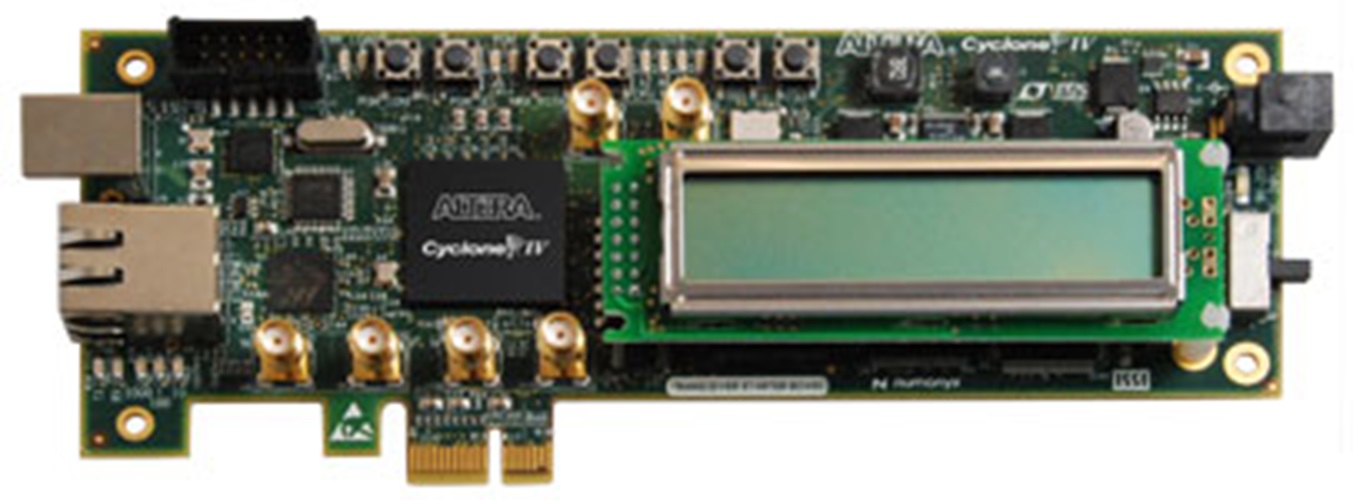

The Altera Cyclone IV FPGA family extends the Cyclone FPGA series leadership in providing the market’s lowest cost, lowest power FPGAs, including a transceiver variant. Ideal for high-volume, cost-sensitive applications, Cyclone IV FPGAs enable you to meet increasing bandwidth requirements while lowering costs. The Altera Cyclone IV GX Transceiver Starter Kit offers you a platform for developing transceiver I/O-based FPGA designs. This kit provides complete hardware and software to enable you to develop your FPGA design, measure FPGA static and dynamic power consumption, test signal quality of the FPGAs transceiver I/O (up to 2.5 Gbps) and develop and test PCI Express 1.0 endpoint x1 lane designs (~250 MB per second transfer rate).

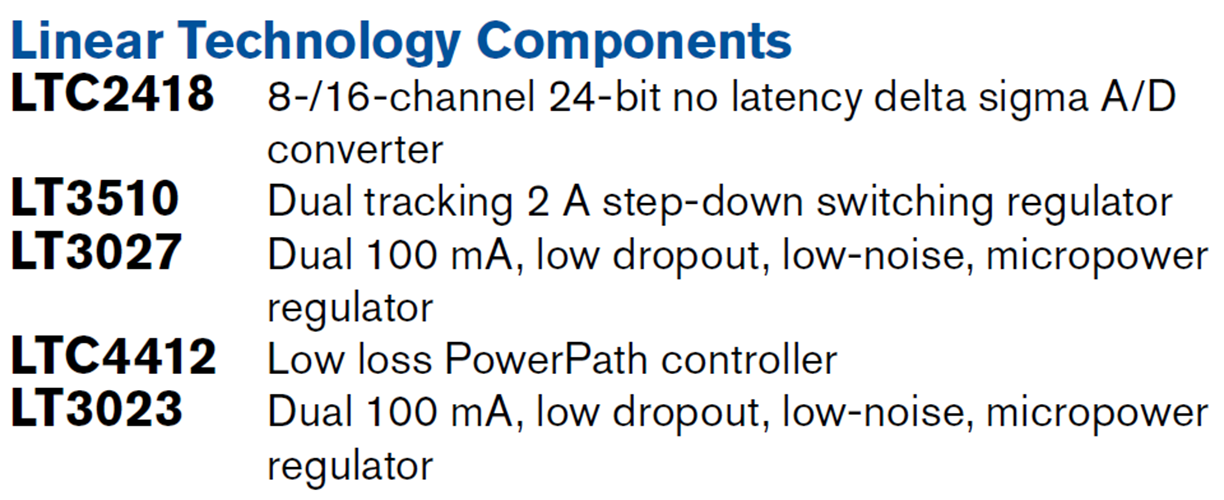

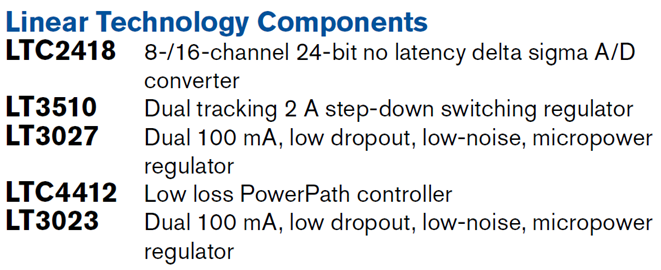

Linear Technology Components

LTC2418 8-/16-channel 24-bit no latency delta sigma A/D converter.

LT3510 Dual tracking 2A step-down switching regulator.

LT3027 Dual 100mA, low dropout, low-noise, micropower regulator.

LTC4412 Low loss PowerPath controller.

LT3023 Dual 100mA, low dropout, low-noise, micropower regulator.
