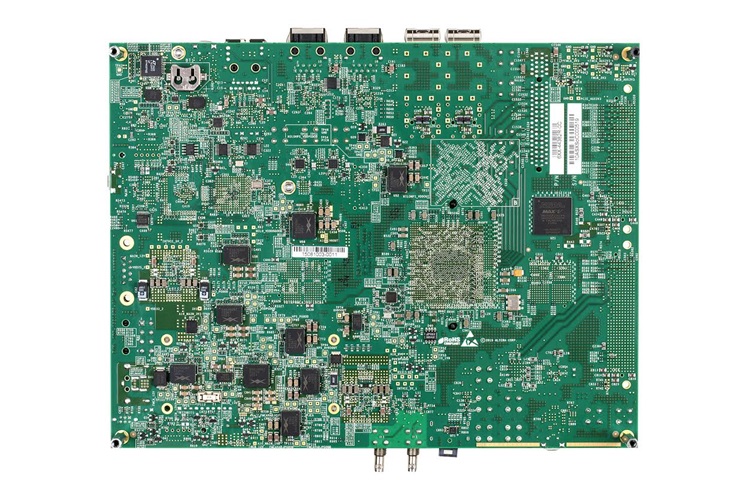

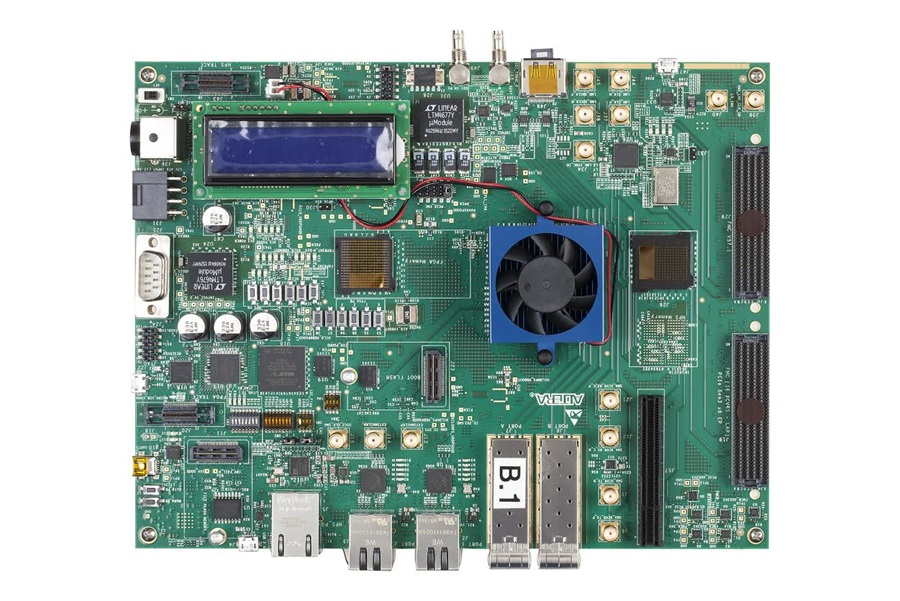

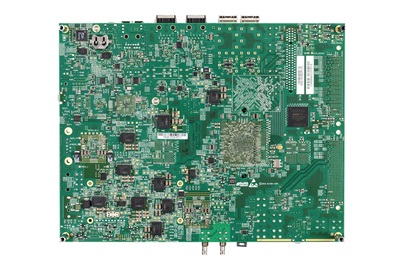

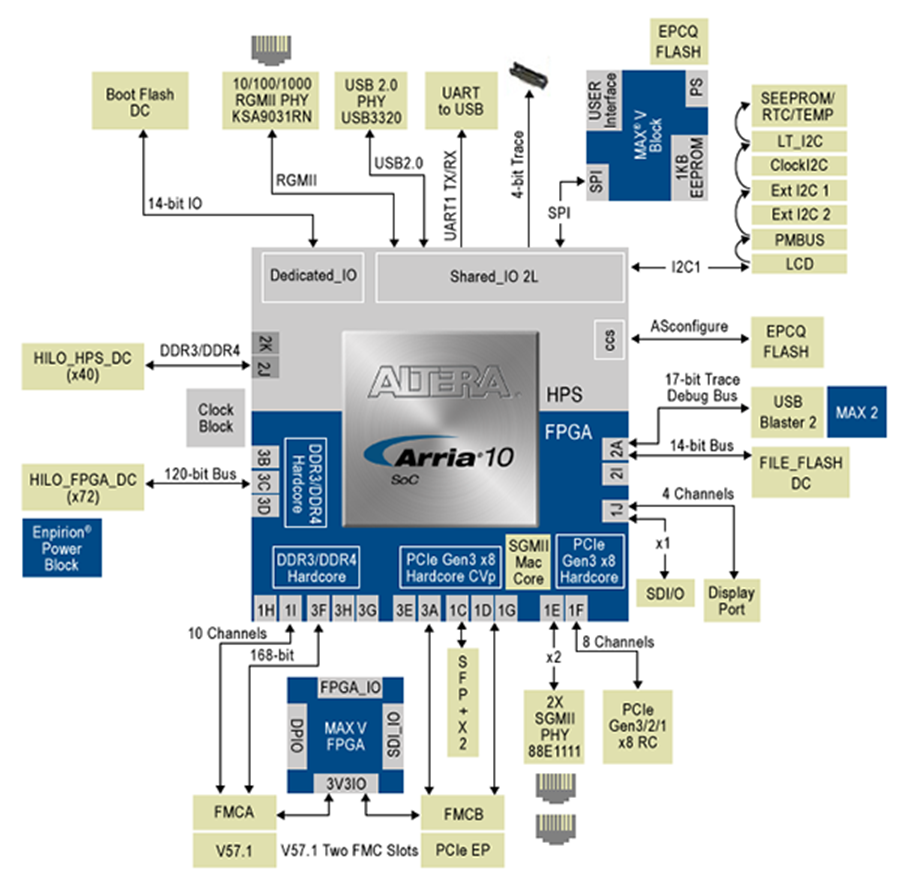

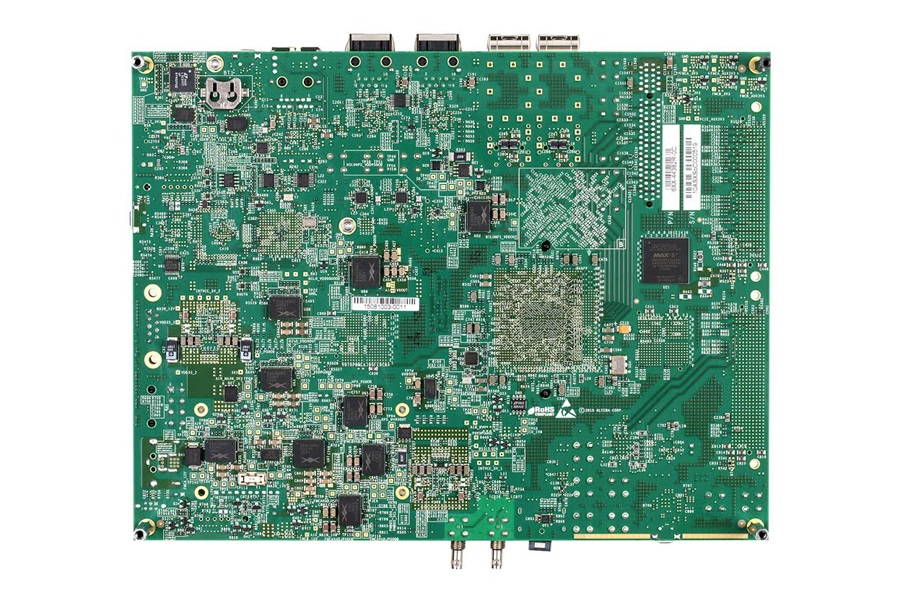

The Altera^® Arria^® 10 SoC Development Kit offers a quick and simple approach for developing custom ARM^® processor-based SoC designs. Design productivity is one of the driving philosophies of the Arria 10 SoC architecture. The Arria 10 SoCs offers full software compatibility with previous generation SoCs, a broad ecosystem of ARM software and tools, and the enhanced FPGA and DSP hardware design flow.

Altera’s Arria 10 SoCs have been designed to meet the performance and power requirements for mid-range applications such as:

• Wireless infrastructure equipment including remote radio unit and mobile backhaul*
• Compute and storage equipment including flash cache, cloud computing, and acceleration*
• Broadcast studio and distribution equipment including professional A/V and video conferencing*
• Military guidance, control, and intelligence equipment*
• Wireline 100G line cards, bridges and aggregation, 40G GPON*
• Test and measurement equipment*
• Diagnostic medical imaging equipment*
• PCI Express^® (PCIe^®) Gen3 x8 lanes (endpoint or root port)*

*Application-specific daughter cards, available separately, supporting a wide range of I/O and interface standards

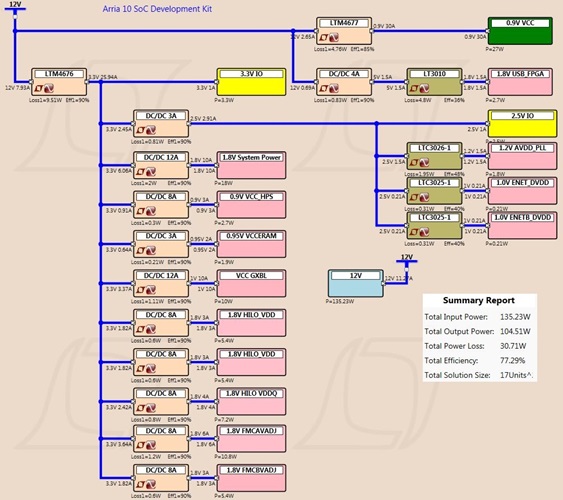

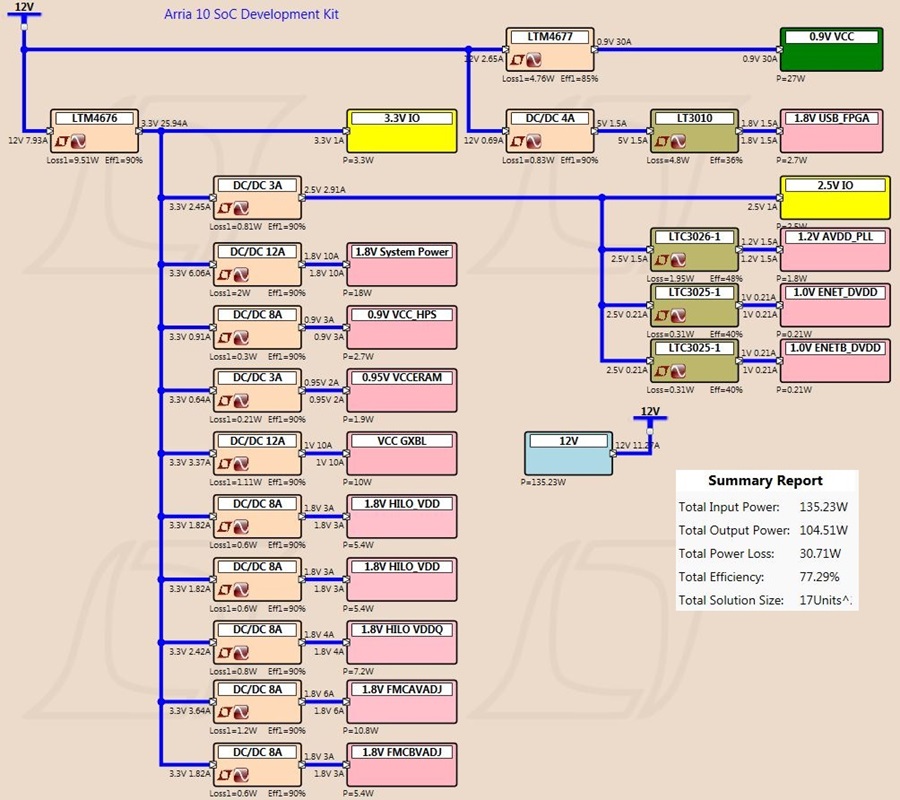

Rail/Function	Part Number	General Description of Part
0.9V: VCC(FPGA Core)	LTM4677	Dual 18A or Single 36A µModule regulator with Digital power System management
3.3V: System Power	LTM4676	Dual 13A or Single 26A µModule regulator with Digital power System management
1.2V: AVDD_PLL	LTC3026-1	1.5A Low Input Voltage VLDO Linear Regulator
1.0V: ENET_DVDD	LTC3025-1	500mA Micropower VLDO Linear Regulators
1.8V: USB_FPGA	LT3010	50mA, 3V to 80V Low Dropout Micropower Linear Regulator
Voltage Monitor and Control	LTC2977	8-Channel PMBus Power System Manager Featuring Accurate Output Voltage Measurement
16Bit Adc for Analog Input	LTC2497	16-Bit 8-/16-Channel Delta Sigma ADC with Easy Drive Input Current Cancellation and I2C Interface
1.25V Voltage Reference	LT1389	Nanopower Precision Shunt Voltage Reference
