LTC4012-3 13V~20Vin、3 节锂离子电池 (12.3V) 3A 电池充电器
详情介绍
概览
产品详情

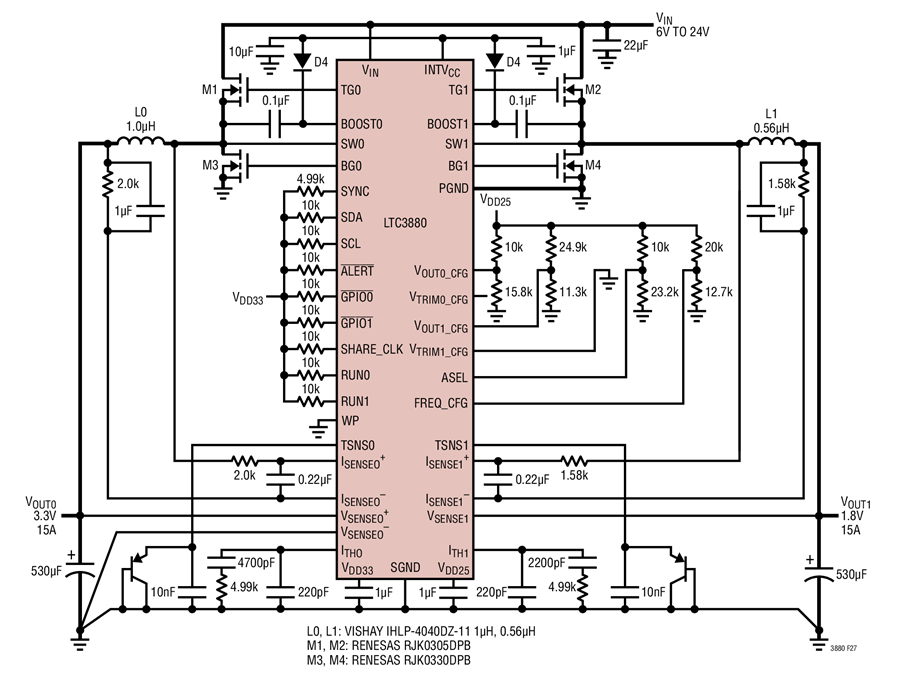

LTC3880 / LTC3880-1 是一款双通道、多相 DC/DC 同步降压型开关稳压控制器，具有一个符合基于 I2C 的 PMBus 标准的串行接口。该控制器运用了一种恒定频率、电流模式架构，该器件得到了具有易用型图形用户界面 (GUI) 的 LTpowerPlayTM 软件开发系统的支持。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
