LTC3884 高效率、双输出 2.5V/30A 和 3.3V/30A 降压型转换器
详情介绍
概览
产品详情

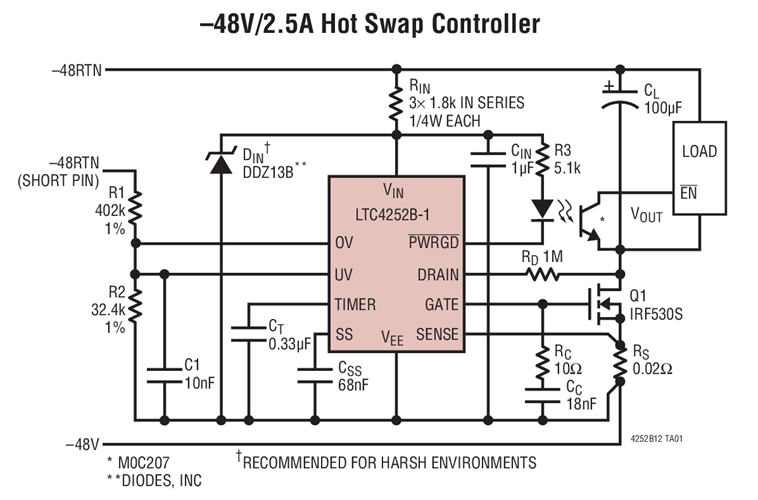

LTC4252 负电压热插拔 (Hot Swap) 控制器允许在带电背板上安全地进行电路板的插拔操作。输出电流由 3 个电流限制级来控制：一个定时电路断路器、有源电流限制和一条快速前馈通路 (用于限制最坏情况灾难性故障条件下的峰值电流)。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
