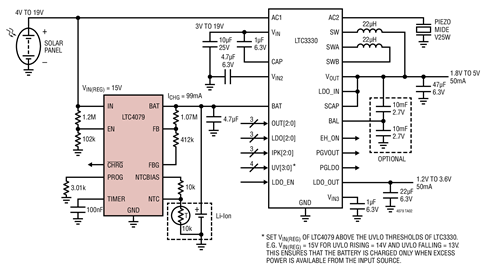

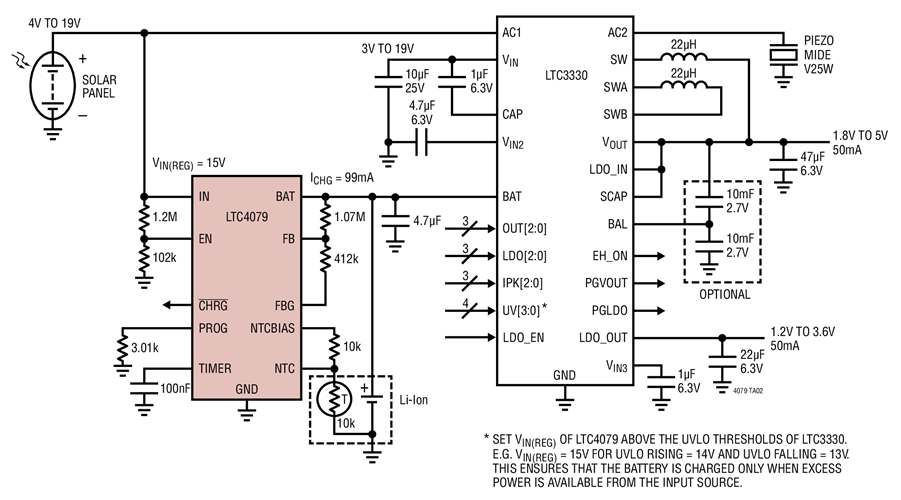

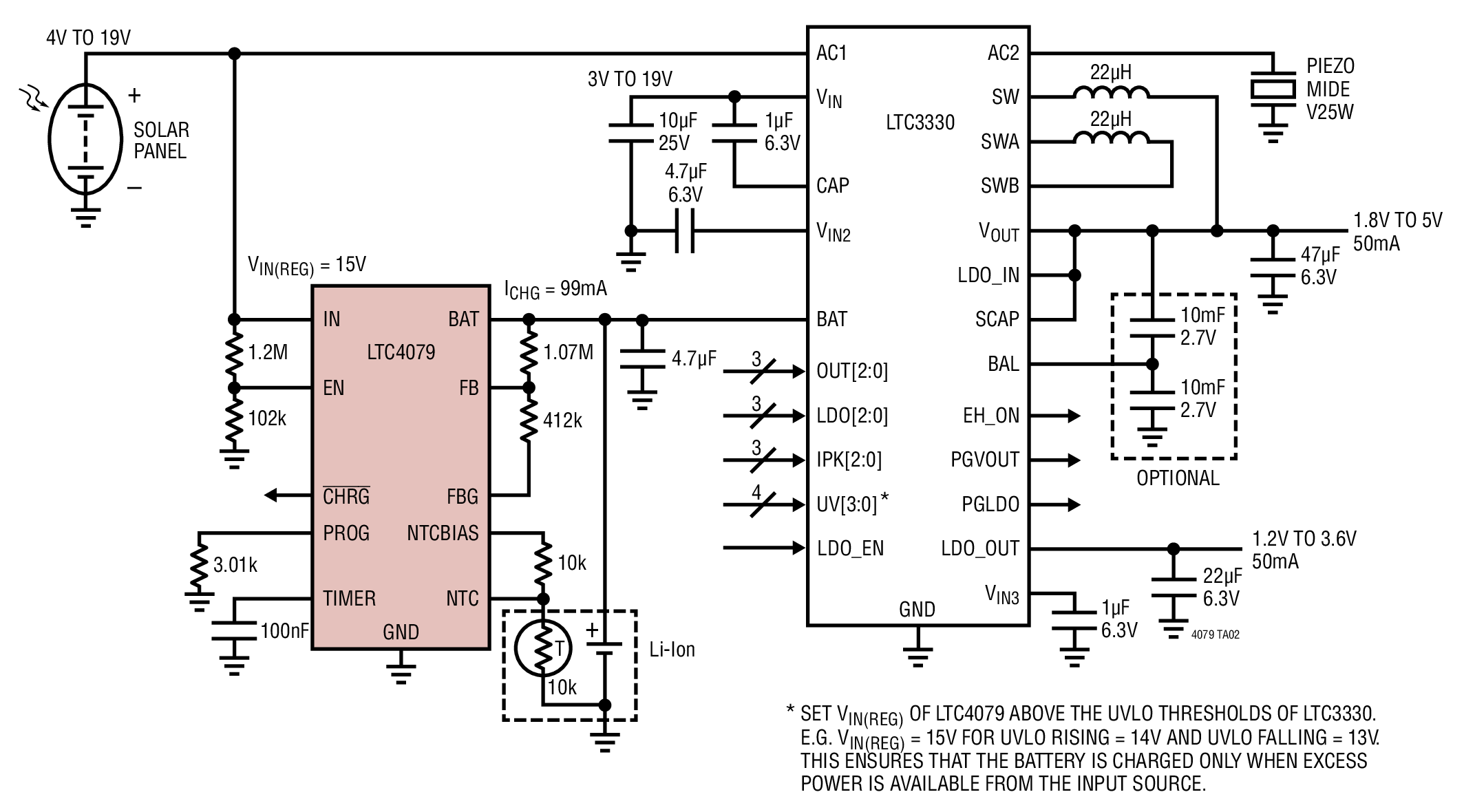

Energy Harvesting Charger with Buck, Buck-Boost and LDO Supplies

LTC4079 是一款适合大多数电池化学组成类型的低静态电流、高电压线性充电器,包括锂离子 / 锂聚合物电池、铅酸电池或高达 60V 的 NiMH 电池组。最大充电电流可利用一个外部电阻器在 10mA 至 250mA 的范围内进行调节。电池充电电压采用一个外部电阻分压器来设定。


相关分类

相关产品

工具及仿真模型

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
