通用输入 48W PFC 应用
详情介绍
概览
产品详情

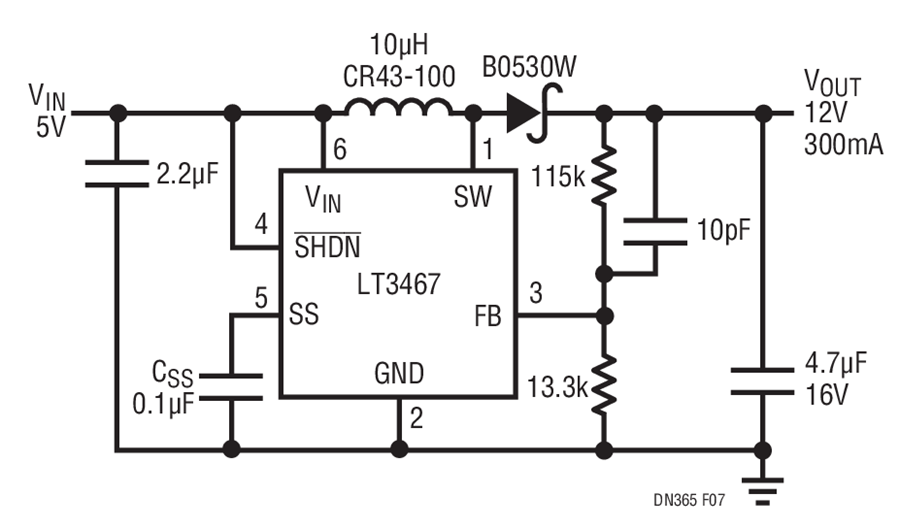

LT3467 / LT3467A 开关稳压器组合了一个 42V、1.1A 开关和一种软起动功能。该器件的引脚与 LT1930 相兼容，它的低 VCESAT 双极开关使其能够在小占板面积内提供高电流输出。LT3467 的开关频率为 1.3MHz，允许使用纤巧型、低成本和扁平的电感器和电容器。LT3467A 的开关频率为2.1MHz，因而允许采用甚至更小的元件。通过采用可编程软起动功能，消除了启动时的高浪涌电流。单个外部电容器设定了电流斜坡速率。由于运用了一种恒定频率电流模式 PWM 架构，因此产生了易于滤除的低和可预知的输出噪声。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
