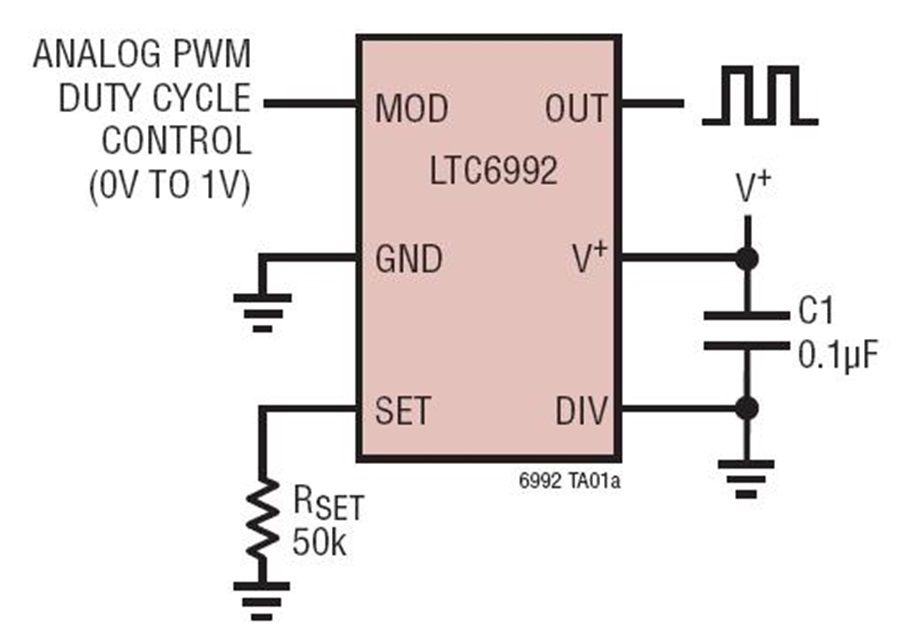

1MHz Pulse Width Modulator

This circuit highlights the use of the LTC6992 as a 1MHz Pulse Width Modulator (PWM); converting an analog input into a PWM output. The LTC6992 is part of the TimerBlox family of versatile silicon timing devices and provides an easy-to-use analog voltage-controlled PWM capability. To program the master oscillator frequency a single resistor is all that is needed. The output frequency is determined by this master oscillator and an internal frequency divider programmable to eight settings from 1 to 16384. Applying a voltage between 0V and 1V on the MOD pin sets the duty cycle.

相关分类

相关产品

工具及仿真模型

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
