LT8302 8V 至 32Vin/12Vout 隔离型反激式转换器
详情介绍
概览
产品详情

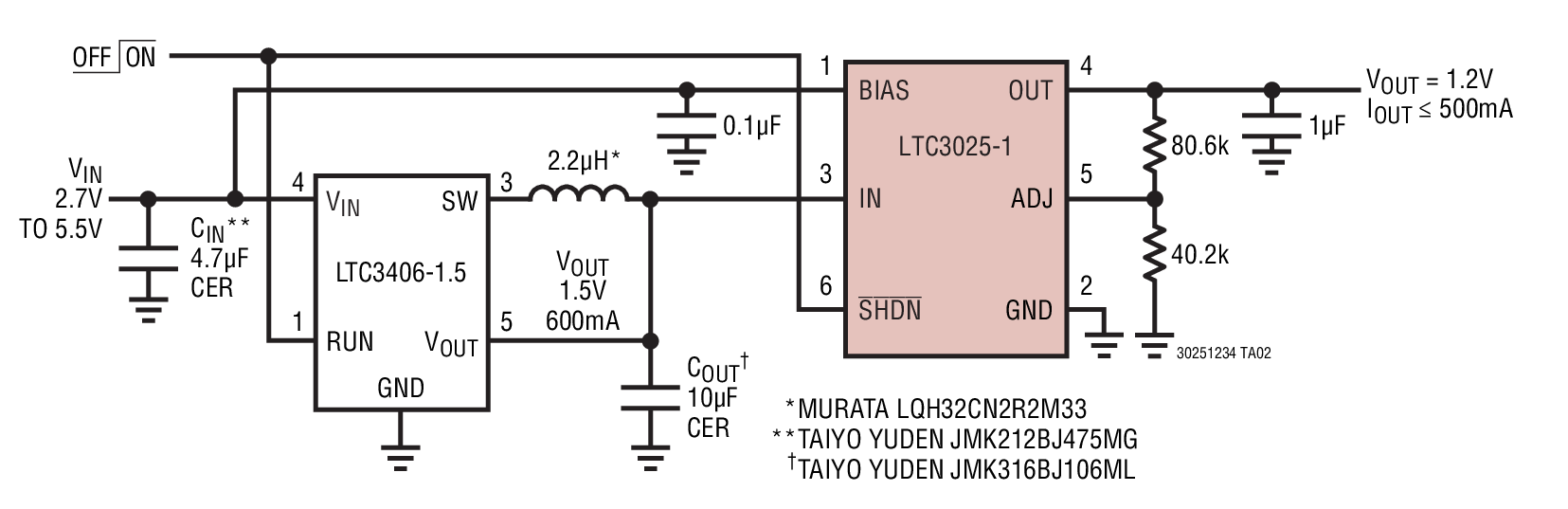

LTC®3025-X 是一款微功率、VLDOTM (非常低压差) 线性稳压器，可在输入电压低至 0.9V 的条件下运作。该器件能够提供 500mA 输出电流，典型压差仅为 85mV。需要一个 BIAS 电源以用于运行内部基准和 LDO 电路，而输出电流则直接来自 IN 电源，以实现高效稳压。LTC3025-1 具有一个可调的输出和一个 0.4V 的低基准，而 LTC3025-2、LTC3025-3 和 LTC3025-4 就分别具有一个固定的 1.2V、1.5V 和 1.8V 输出电压。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
