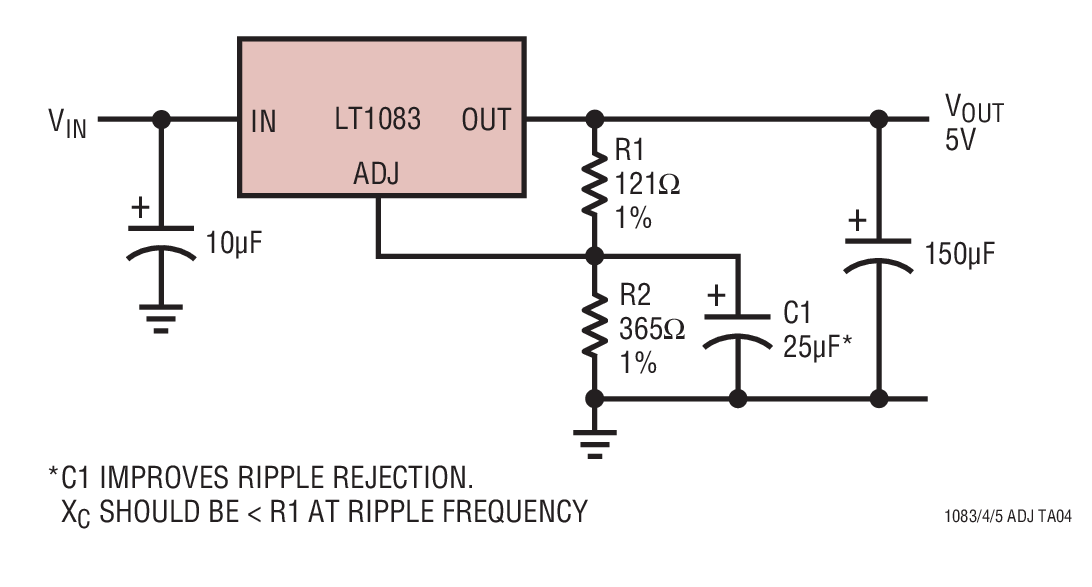

具接地参考输入和输出的压控电流源
详情介绍
概览
产品详情
LT1083 系列正可调稳压器专为以高于现有器件的效率来提供 7.5A、5A 和 3A 输出电流而设计。所有内部电路均为能够在低至 1V 的输入至输出差分电压条件下运作而设计，并且把压差电压作为负载电流的一个函数拟订了全面的规格。压差在最大输出电流条件下保证为 1.5V (最大值)，并在较低负载电流时有所减小。片内修整把输出电压准确度调节至 1%。对电流限值也进行了修整，从而最大限度地减小了过载条件下稳压器和电源电路上承受的应力。
工具及仿真模型
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
