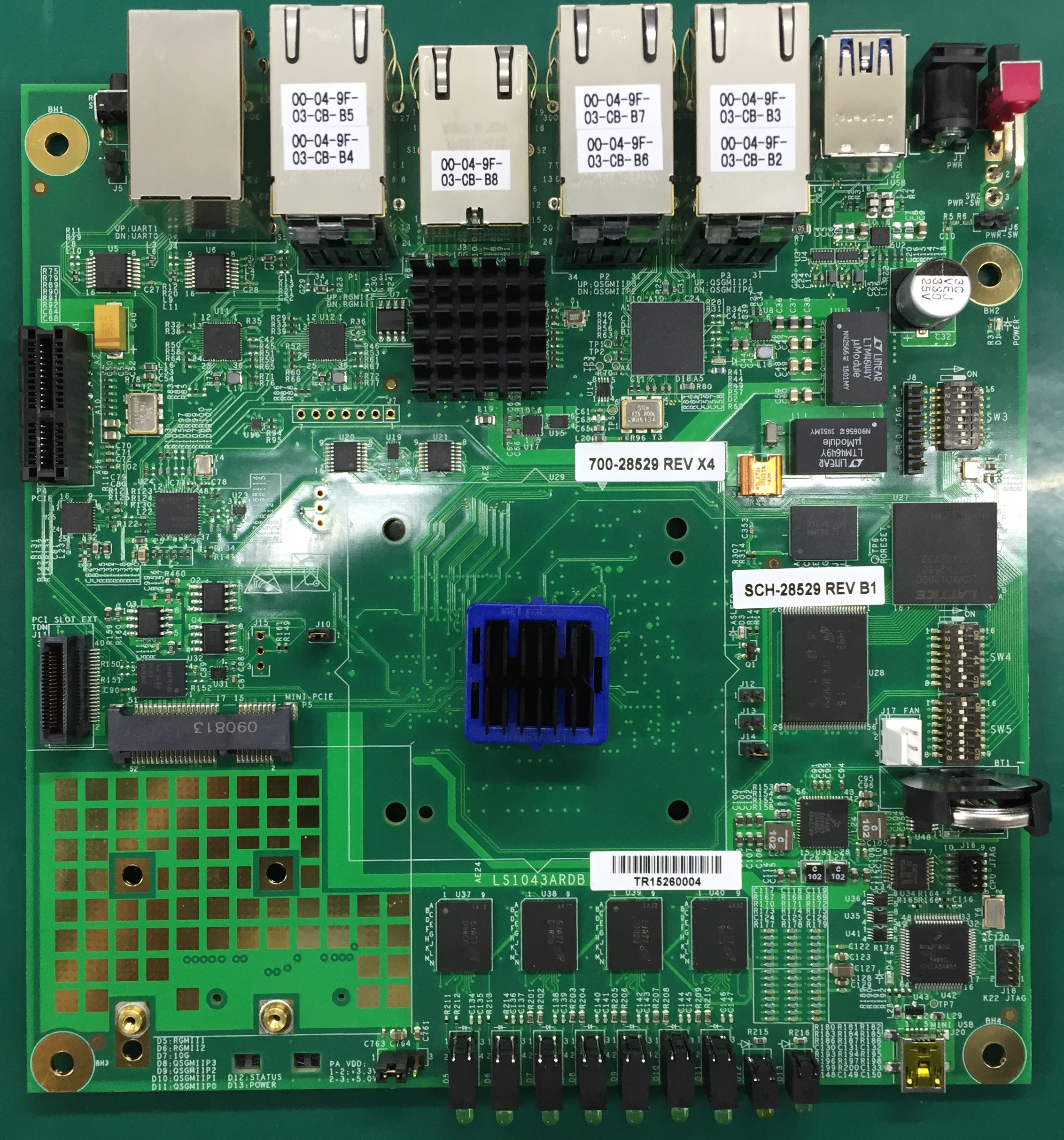

The QorIQ LS1043A reference design board (LS1043A-RDB) is designed to exercise most capabilities of the LS1043A device; NXP’s first quad-core, 64-bit ARM^®-based processor for embedded networking and industrial infrastructure.

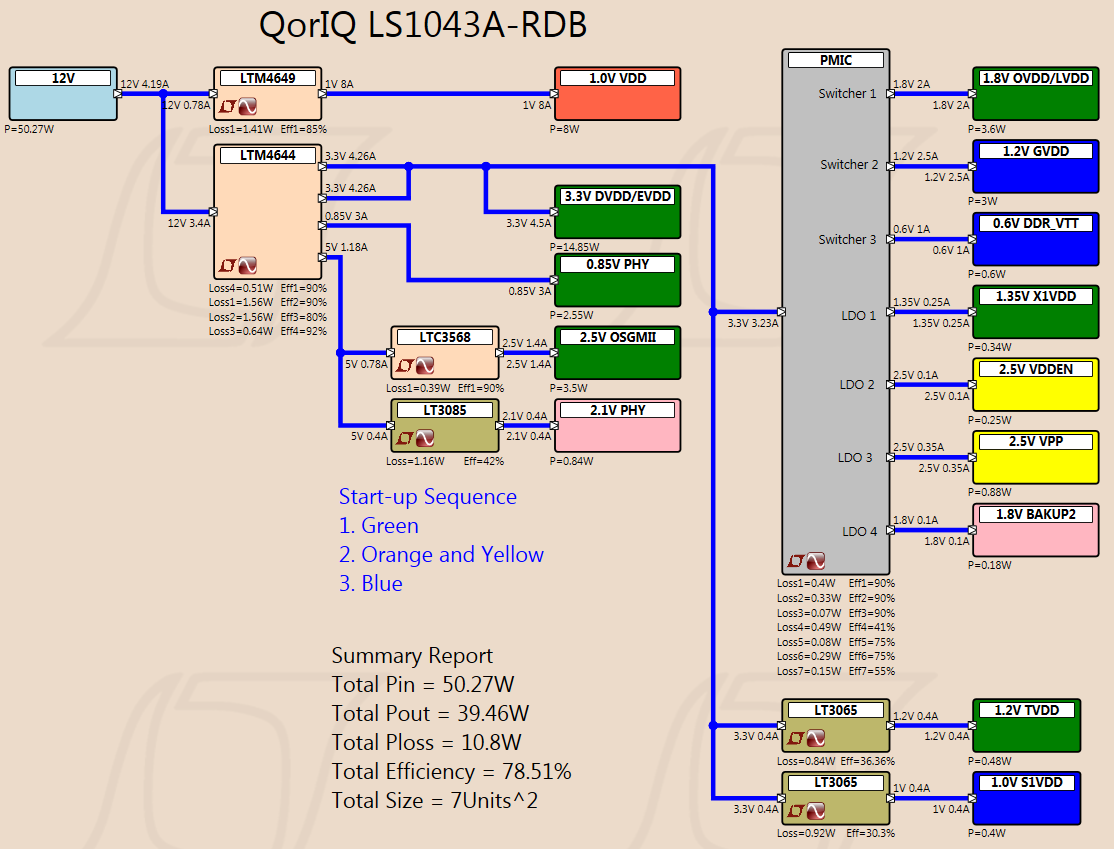

Rail/Function	Part Number	General Description of Part
1.0V: VDD	LTM4649	10A Step-Down DC/DC µModule Regulator
3.3V: DVDD/EVDD 0.85V : PHY 5V: System Power	LTM4644	Quad DC/DC µModule Regulator with Configurable 4A Output Array
2.5V : OSGMII	LTC3568	1.8A, 4MHz, Synchronous Step-Down DC/DC Converter
2.1V : PHY	LT3085	Adjustable 500mA Single Resistor Low Dropout Regulator
1.2V : TVDD 1.0V : S1VDD	LT3065	45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good
