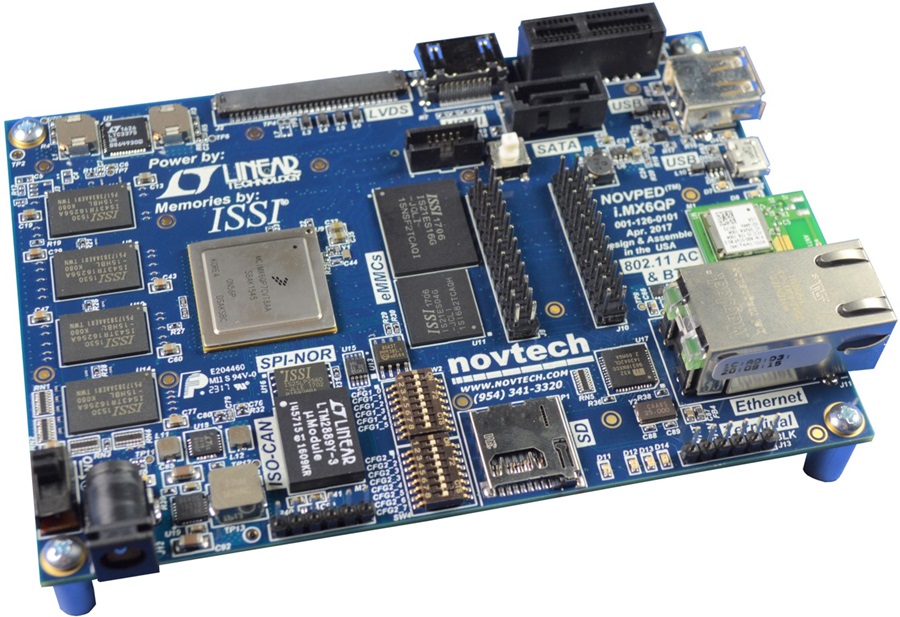

The i.MX 6QuadPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.2 GHz* with 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support.

Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for a leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.

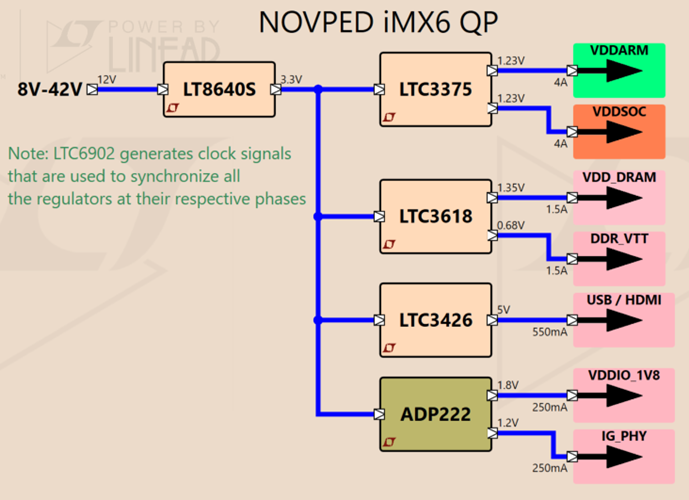

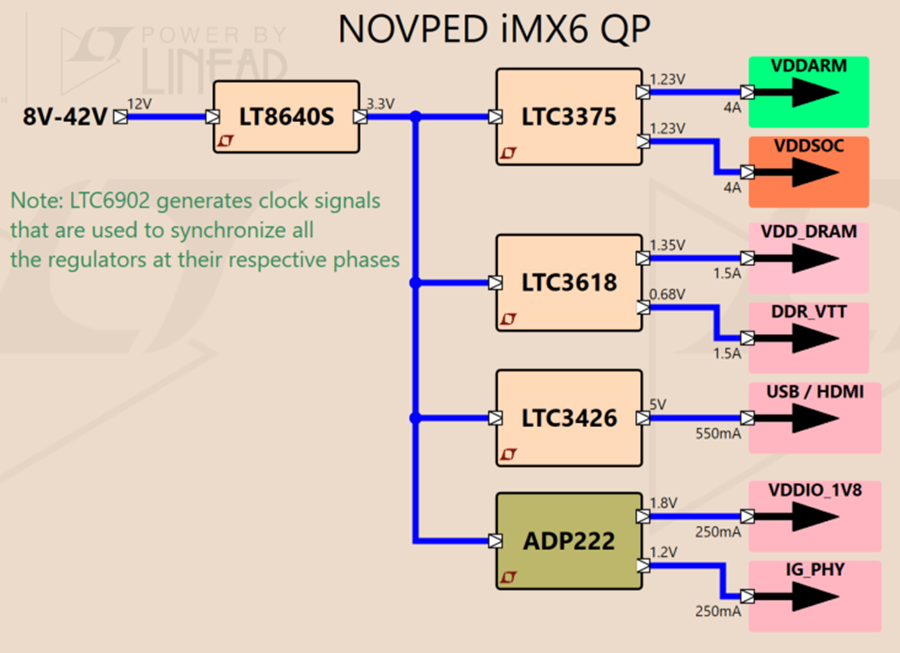

Rail/Function	Part Number (s)	Description
VDDARM	LTC3375	8-Channel Programmable, Parallelable 1A Buck DC/DCs
VDDSOC	LTC3375
VDD_DRAM	LTC3618	Dual 4MHz, ±3A Synchronous Buck Converter for DDR Termination
DDR_VTT	LTC3618
USB / HDMI	LTC3426	Wide VIN Range Buck-Boost Charge Pump with Watchdog Timer
VDDIO_1V8	ADP222	Dual, 300 mA Fixed Output, Low Noise, High PSRR Voltage Regulator
IG_PHY	ADP222
Step-Down Converter	LTC8640S	42V, 6A Synchronous Step-Down Silent Switcher 2 with 2.5μA Quiescent Current
